| Phased Array Configuration: | Phased Array Dual-probe (one Transmit, One Receive) Inspection Mode, And Combined Inspection Using Phased Array With Robes Or TOFD Probes | Inspection Modes: | Phased Array, Fastening Stress, TOFD, And A-scan, Which Can Be Switched Directly Via Buttons |
|---|---|---|---|
| Data Transmission: | Wi-Fi Wireless Network Interface, A LAN Network Interface, And A Data Expansion Interface For Convenient Data Transmission | Leak-proof Protective: | Fully Enclosed, Leak-proof Protective Design That Meets IP66 Requirements |
| Phased Array Display: | Simultaneous On-screen Display Of Phased Array And TOFD Data; The TOFD Scanner Can Be Upgraded To A Dual-screen, Dual-control Display | Software Function: | Supports Imaging Modes Such As A-scan, B-scan, S-scan, C-scan, D-scan, 3D Scan, TOFD Scan, And Polar Coordinate Views, And Can Display Combinations Of Multiple Modes |
| Highlight: | non destructive testing machine,non destructive testing instruments |
||
Multifunctional Phased

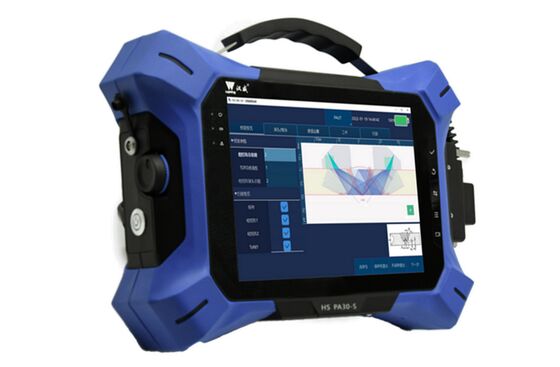

Array Tester PA30-S for Detection of Bolt Cracks and Fastener Stress
Brief Introduction:
The iqualitrol PA30-S Ultrasonic Phased Array Tester is suitable for various metallic and non-metallic materials such as carbon steel, stainless steel, alloy steel, copper, and aluminum,
it enables rapid and accurate detection, localization, evaluation, and diagnosis of internal defects (cracks, inclusions, porosity, gas holes, etc.) in different processed components and structural forms, including plates, welds, castings, forgings, and pipes.
Main Features:
1, All-in-one, compact design compatible with bolt crack detection, bolt preload measurement, TOFD testing, and A-scan testing.
2, Visualized data on the inspection interface, supplemented by intelligent one-click waveform search, for faster inspection speeds.
3, Simple operation: the phased array transducer automatically calibrates; simply place the probe directly on the bolt end to obtain readings.
4, Displays inspection results from multiple viewing angles (A, C, L, 3D), making defect identification easier.
5, Utilizes a comparison algorithm based on the difference in sound velocity and standard models, ensuring more precise bolt preload results with accuracy as high as 1 ns.
6, The ultrasonic device is compact, portable, and energy-efficient. Its low-capacity power supply is portable and offers long battery life, making it ideal for on-site work at heights.
Technical Specifications:
| Parameter Categories | Parameter Options |
Phased Array Channels |
Standard Channels |
| PA/UT Configuration | Receive/Transmit |
16/128, 16/64 optional |
4-channel TOFD (2 pairs, 1 transmit, 1 receive)/2-channel stress |
| Pulse Generator | Excitation pulse voltage | 50V–100V | 200 V–350 V |
| Pulse shape |
Negative square wave |
Negative square wave | |
| Pulse width |
30 ns–500 ns, adjustable |
30 ns–500 ns, adjustable | |
| Pulse rise time | <8 ns | <15 ns | |
|
Transmit pulse repetition frequency |
200 Hz–20 kHz, adjustable |
100 Hz–1 kHz, adjustable | |
| Delay | 0–20 μs/2.5 ns | 0–655 μs / 10 ns | |
| Transmit impedance | / | 500/50 Ω | |
| Receiver | Receive delay | 50 μs/2.5 ns | / |
| Gain Range |
80 dB/0.1 dB (analog) + 30 dB/6 dB (digital) |
110 dB/0.1 dB | |
| System bandwidth | 0.5 MHz–20 MHz | 0.5 MHz–20 MHz | |
| Data acquisition | Sampling rate | 100 MHz/10 bits | 125 MHz/8 bits (TOFD, A-scan) 1000 MHz/8 bits (bolt stress) |
| Maximum A-scan depth | 8192 | 2048 | |
| Focusing mode |
Conventional/ Dynamic/ Full Range |
/ | |
| Focus Type |
Depth/Range/ Horizontal |
/ | |
| Detection |
RF, Positive Test, Negative Test, Full Test |
RF, Positive Test, Negative Test, Full Test | |
| Scanning and Display | Scan Types |
Fan scan/Line scan/ Combined scan |
/ |
| Display Modes | A/B/C/L/S/3D | A/B/C | |
| Programmable TCG | Number of points | 32 | / |
| Maximum gain | 40 dB, 0.1 dB steps | / | |
| Maximum gain slope | 40 dB/μs | / | |
| Data storage | 256 GB | ||
| Display | Size | 8.4'' | |
| Resolution | 1024×768 | ||
| Touchscreen Type | Capacitive touchscreen | ||
| I/O Ports | USB | USB 3.0 / USB 2.0 | |
| Ethernet | 1000 Mbps (USB adapter) | ||
| Video Output | HDMI | ||
| Encoder |
ODU-7PIN Dual-Channel Encoder |
||
| Language | Chinese/English | ||
| Power Supply | DC Supply Voltage | DC 24V/3.75A | |
| Battery | 11.1V-13Ah | ||
| Continuous operating time | ≥4 hours | ||
| Overall Dimensions | 280 × 210 × 80 (mm) | ||
| Unit Weight | 3.5 kg (including battery) | ||
| Operating temperature | (0–40)°C (reference value) | ||
| Storage temperature | (-10–40)°C (reference value) | ||
Applications:
Rapid detection of bolt cracks and fastening stresses;
Locating and detecting internal defects in various structural forms, including plates, welds, castings, forgings, and pipes.
