Principle: | F Magnetic Induction & NF Type Eddy Current | Range: | 0~2000µm/0~80mil |
---|---|---|---|
Resolution: | 0.1µm/1µm | Accuracy: | ±1~3%n Or ±2.5µm |
Operating Conditions: | Temperature:0~40ºC/ Humidity:10~90%RH | Power Supply: | 4x1.5V AAA (UM-4)Battery |
Highlight: | non destructive testing machine,fruit hardness tester |

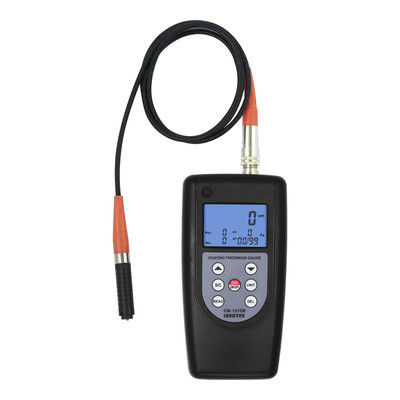

Coating Thickness Gauge CM-1210B
Spec:The F probes measure the thickness of non-magnetic materials on magnetic materials. The N probes measure the thickness of non-conductive coatings on non-magnetic metals.
Features
* Can store the new data in 99 groups.
* Two measuring methods: magnetic induction (F) and eddy current (N)
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Automatic memory of calibration value,and automatic recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
* Separate Type can provide several type probe, measure can be more flexibility.
Principle
Principles | Applications | Examples |
F Type Magnetic Induction (Iron Base) |
Measure the thickness of non-magnetic materials on magnetic materials | Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc |
NF Type Eddy Current (Aluminium Base) |
Measure the thickness of non-conductive coatings on non-magnetic metals | Anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etc |
Specifications
Principle | F Magnetic Induction & NF Type Eddy Current |
Range | 0~2000µm/0~80mil |
Resolution | 0.1µm/1µm |
Accuracy | ±1~3%n or ±2.5µm |
Min.Radius Workpiece | F Type:convex 1.5mm/concave 25mm |
NF Type:convex 3mm/concave 50mm | |
Min.Measuring Area | 6mm |
Min.Sample Thickness | 0.3mm |
Metric/Imperial | √ |
Functions | Battery Indicator & Automatic Power Off |
Data Memory | 99 Groups |
Operating Conditions | Temperature:0~40ºC |
Humidity:10~90%RH | |
Power Supply | 4x1.5V AAA (UM-4)Battery |
Dimensions | 140x72x34mm |
Weight | 215g(Not Including Batteries) |
Standard Accessories | CM-1210A | CM-1210B |
Main Unit | √ | √ |
Probe (F & NF Type) | √ | √ |
Calibration Base (F) | √ | √ |
Calibration Base (NF) | √ | √ |
Calibration Foils | 1 set, 5 pieces | |
Carrying Case | B04 | |
Operation Manual | √ | |
Optional Accessories | RS-232C Data Cable with Software | |
Bluetooth Data Adapter with Software |
