Digital Coating Thickness Gauge(F Type) CM-8820

China Digital Coating Thickness Gauge(F Type) CM-8820 supplier

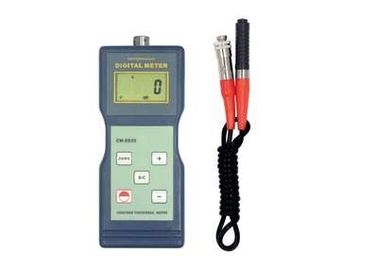

Large Image :  Digital Coating Thickness Gauge(F Type) CM-8820

Product Details:

Place of Origin: DONGGUAN
Brand Name: iqualitrol
Certification: CE
Model Number: CM-8820

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 10 work day
Payment Terms: T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Display: 4 Digits ,10mm LCD Principle: F Magnetic Induction
Resolution: 0 ~ 2000 M / 0~80 Mil Range: 0.1 M (0~99.9 M)/ 1 M (over 100m)
Operating Condition: Temp :0 ~ 40℃/ Humidity :< 80% Power Supply: 4x 1.5 AA(UM-3) Battery
High Light:

non destructive testing instruments


fruit hardness tester


Spec:Widely used to measure the thickness of non-magneticmaterials(e.g.paint,plastic,porcelain enamel,copper.zinc,aluminium,chrome etc.)on magnetic materials(e.g.iron,nickle etc.)Often used to measure



* It meets the standard of ISO2178. Suitable for the laboratory amd for use in harsh field conditions.

* Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time.

* Wide measuring range and high resolution.

* Digital display gives exact reading with no guessing or errors.

* The use of durable,long-lasting compone-nts,including a strong,light weight ABS-plastic housing assures maintenance free performance for many years. The housing has been carefully shaped to fit comfortably in either hand.



Display 4 digits ,10mm LCD
Principle F Magnetic Induction
Resolution 0 ~ 2000 m / 0~80 mil
Range 0.1 m (0~99.9 m)
1 m (over 100m)
Accuracy 5%n or 5.0m
Operating Condition Temp :0 ~ 40℃
Humidity :< 80%
Power supply 4x 1.5 AA(UM-3) battery
Size 161 x 69 x 32 mm
Weight About260 g (including batteries)
Standard Accessories Mian Unit
Probe (F Type)
Calibration Base (F)
Calibration Foils
Carrying Case
Operation Manual
