Coating Thickness Gauge CM-8821

China Coating Thickness Gauge CM-8821 supplier

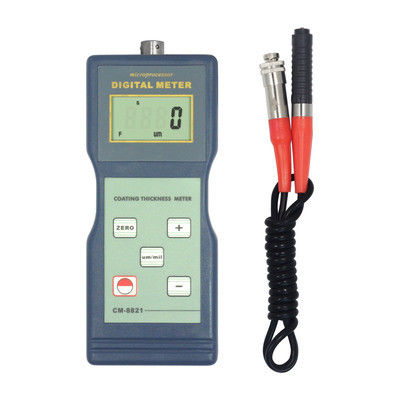

Large Image :  Coating Thickness Gauge CM-8821

Product Details:

Place of Origin: DONGGUAN
Brand Name: iqualitrol
Certification: CE
Model Number: CM-8821

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 10 work days
Payment Terms: T/T
Supply Ability: 100 Sets per month
Contact Now
Detailed Product Description
Range: 0~1000µm/0~40mil Resolution: 0.1µm/1µm
Accuracy: ±1~3%n Or ±2.5µm Min.Radius Workpiece: F Type:convex 1.5mm/concave 25mm/ NF Type:convex 3mm/concave 50mm
Metric/Imperial: Convertible Operating Conditions: Temperature:0~50ºC/ Humidity:<80%RH
High Light:

non destructive testing machine

,

fruit hardness tester



Spec:The F probes measure the thickness of non-magnetic materials on magnetic materials.



Features

* Measuring Principle: magnetic induction (F).

* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)

* Metric/imperial system selectable.

* Manual or automatic shut down.

* Automatic memory of calibration value,and automatic recognize the substrate.

* Operation process have buzzing reminder,while no buzzing in continuous mode.



Principle

Principles Applications Examples
F Type
Magnetic Induction
(Iron Base)
Measure the thickness of non-magnetic materials on magnetic materials Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc



Specifications

Principle F Magnetic Induction
Range 0~1000µm/0~40mil
Resolution 0.1µm/1µm
Accuracy ±1~3%n or ±2.5µm
Min.Radius Workpiece F Type:convex 1.5mm/concave 25mm
NF Type:convex 3mm/concave 50mm
Min.Measuring Area 6mm
Min.Sample Thickness 0.3mm
Metric/Imperial Convertible
Battery Indicator Low Battery Indicator
Automatic Power Off
Operating Conditions Temperature:0~50ºC
Humidity:<80%RH
Power Supply 4x1.5V AA (UM-3)Battery
Dimensions 161x69x32mm
Weight 210g(Not Including Batteries)

Accessories

Standard Accessories Main Unit
Probe (F Type)
Calibration Base (F)
Calibration Foils (1 set, 5 pieces)
Carrying Case (B04)
Operation Manual
