Coating Thickness Gauge CM-8823

China Coating Thickness Gauge CM-8823 supplier

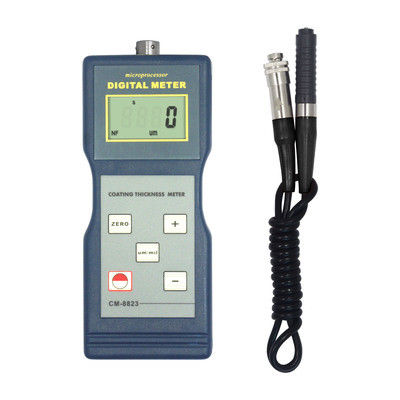

Large Image :  Coating Thickness Gauge CM-8823

Product Details:

Place of Origin: DONGGUAN
Brand Name: iqualitrol
Certification: CE
Model Number: CM-8823

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 10 work days
Payment Terms: T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Principle: NF Type Eddy Current Range: 0~1000µm/0~40mil
Accuracy: ±1~3%n Or ±2.5µm Min.Radius Workpiece: F Type:convex 1.5mm/concave 25mm/ NF Type:convex 3mm/concave 50mm
Min.Measuring Area: 6mm Operating Conditions: Temperature:0~50ºC/ Humidity:<80%RH
High Light:

non destructive testing instruments


fruit hardness tester


Spec:The N probes measure the thickness of non-conductive coatings on non-magnetic metals.



* Measuring Principle: eddy current (N)

* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)

* Metric/imperial system selectable.

* Manual or automatic shut down.

* Automatic memory of calibration value,and automatic recognize the substrate.

* Operation process have buzzing reminder,while no buzzing in continuous mode.



Principles Applications Examples
NF Type
Eddy Current
(Aluminium Base)
Measure the thickness of non-conductive coatings on non-magnetic metals Anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etc



Principle NF Type Eddy Current
Range 0~1000µm/0~40mil
Resolution 0.1µm/1µm
Accuracy ±1~3%n or ±2.5µm
Min.Radius Workpiece F Type:convex 1.5mm/concave 25mm
NF Type:convex 3mm/concave 50mm
Min.Measuring Area 6mm
Min.Sample Thickness 0.3mm
Metric/Imperial Convertible
Battery Indicator Low Battery Indicator
Automatic Power Off
Operating Conditions Temperature:0~50ºC
Power Supply 4x1.5V AA (UM-3)Battery
Dimensions 161x69x32mm
Weight 210g(Not Including Batteries)



Standard Accessories Main Unit
Probe (NF Type)
Calibration Base (NF)
Calibration Foils (1 set, 5 pieces)
Carrying Case (B04)
Operation Manual
