Coating Thickness Gauge CM-8825

China Coating Thickness Gauge CM-8825 supplier

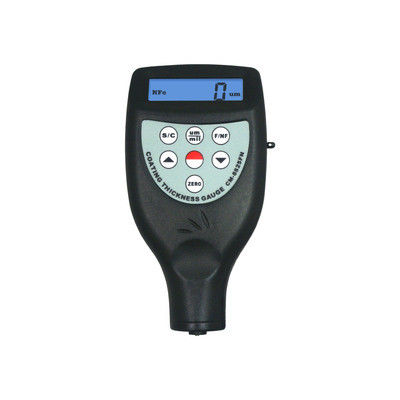

Large Image :  Coating Thickness Gauge CM-8825

Product Details:

Place of Origin: DONGGUAN
Brand Name: iqualitrol
Certification: CE
Model Number: CM-8825

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 10 work days
Payment Terms: T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Principle: NF Type Eddy Current / F Magnetic Induction Range: 0~1250µm/0~50mil
Resolution: 0.1µm/1µm Accuracy: ±1~3%n Or ±2.5µm
Metric/Imperial: Convertible Battery Indicator: Low Battery Indicator
High Light:

non destructive testing machine


non destructive testing instruments


Spec:The F probes measure the thickness of non-magnetic materials on magnetic materials. The N probes measure the thickness of non-conductive coatings on non-magnetic metals.



* Two measuring methods: magnetic induction (F) and eddy current (N)

* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)

* Metric/imperial system selectable.

* Manual or automatic shut down.

* Automatic memory of calibration value,and automatic recognize the substrate.

* Operation process have buzzing reminder,while no buzzing in continuous mode.

* Use USB/RS-232 data output to connect with PC.

* Provide Bluetooth data output choice.

* Integral Type suitable for single-hand operation, large probe with large contact surface have better stability, users can get continuous, good repetitive and precise measurements.



Principles Applications Examples
F Type
Magnetic Induction
(Iron Base)
Measure the thickness of non-magnetic materials on magnetic materials Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc
NF Type
Eddy Current
(Aluminium Base)
Measure the thickness of non-conductive coatings on non-magnetic metals Anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etc



Principle NF Type Eddy Current / F Magnetic Induction
Range 0~1250µm/0~50mil
Resolution 0.1µm/1µm
Accuracy ±1~3%n or ±2.5µm
Min.Radius Workpiece F Type:convex 1.5mm/concave 25mm
NF Type:convex 3mm/concave 50mm
Min.Measuring Area 6mm
Min.Sample Thickness 0.3mm
Metric/Imperial Convertible
Battery Indicator Low Battery Indicator
Automatic Power Off
Operating Conditions Temperature:0~50ºC
Power Supply 4x1.5V AAA (UM-4)Battery
Dimensions 126x65x27mm
Weight 81g(Not Including Batteries)
