Max Capacity 1000N Lift Door Pinch Force Measuring Device iOMC-E

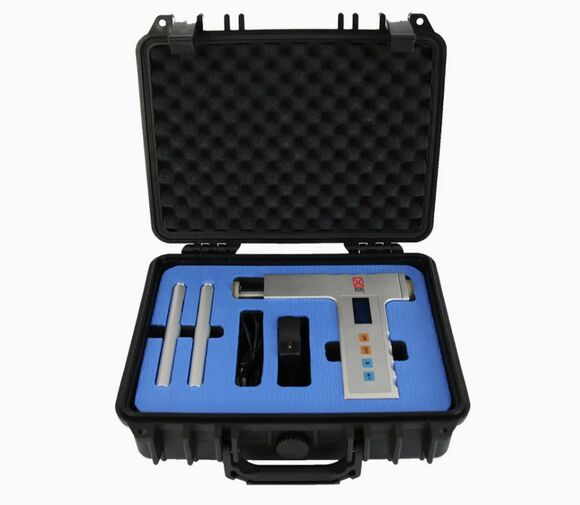

Lift Door Pinch Force Measuring Device iOMC-E

Product Description:

The iqualitrol Lift Door Pinch Force Measuring Device iOMC-E is mainly used for the measurement of the force to prevent the elevator door closing and the kinetic energy of the elevator door, as well as force measurement.

It is suitable for on-site lift inspection companies, lift installation,also applicable to online inspection and maintenance of maintenance companies.

Functions:

Integration of measuring unit and control unit

Automatically measure the lift closing force and analyze the kinetic energy of the lift closing

Threshold setting function

Calibration function

Data browsing, viewing, deletion, etc.

Clock function

Data export function. Test data can be exported to a computer (special software required) for saving and printing

Technical Specifications:

Range: 0-1000N

Accuracy: ±3N

Resolution: 0.1N

Spring modulus: 44.31N/mm

Sensor gap width: >200mm

Display: 1.4 inch blue screen

Operating temperature: -10-50 °C

Battery : DC12V Built-in lithium battery
