Chilled Mirror Dew Point Instrument DP29-SF6

China Chilled Mirror Dew Point Instrument DP29-SF6 supplier

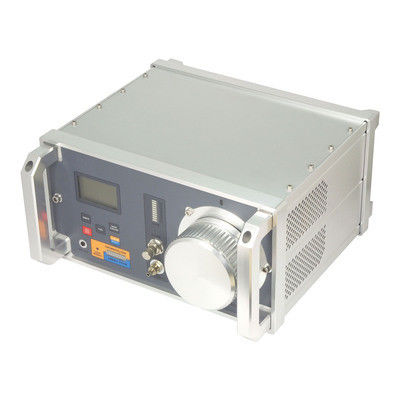

Large Image :  Chilled Mirror Dew Point Instrument DP29-SF6

Product Details:

Place of Origin: DONGGUAN
Brand Name: iqualitrol
Certification: CE
Model Number: DP29-SF6

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Netotiable
Packaging Details: Carton box
Delivery Time: 10 work days
Payment Terms: T/T
Supply Ability: Negotiable
Contact Now
Detailed Product Description
Under 0ºC: -60ºC Under 10ºC: -60ºC
Under 20ºC: -55ºC Under 35ºC: -45ºC
Resolution: 0.1ºC Optional Output: ±10mv/ºC(0ºC=0mv)or 4-20mA
High Light:

non destructive testing instruments

,

fruit hardness tester


Spec:DP29 is a multifunctional, portable dew point humidity meter , especially designed for field use. Typically apply to dew point measurement of SF6gas.

Features
* Based on the principle of chilled mirror.
* Accurate measurement is guaranteed.
* The system is stable, No need to repeatedly calibrated.
* A built in electronic sample gas flow monitor.
* Use RS-232 data output to connect with PC.

Models and Applications
DP29-40 is specifically designed for air dew point measurement. It is applicable to standard reference for electronic component durability , dew point control for firing furnaces, dew point control for fuel cell test system, etc.
DP29-SF6 is specially for the measurement of Sulfur Hexafluoride (SF6).
DP29-60 is a standard type. It applies to standard reference for laboratory calibration, moisture control for ceramic firing furnaces, humidity control for thermo-hygrostat chamber.
DP29-70 is a high-end type. It is suitable for moisture control of drying process, production process of lithium ion battery , measurement of gas with low dew point.

Specifications


ModelDP29-40DP29-60DP29-SF6DP29-70
RangeUnder 0ºC-40ºC-60ºC-60ºC-70ºC
Under 10ºC-40ºC-60ºC-60ºC-65ºC
Under 20ºC-35ºC-55ºC-55ºC-60ºC
Under 35ºC-30ºC-45ºC-45ºC-50ºC
Accuracy<<±0.2ºC,±1Digit
Repeatability<<±0.1ºC,±1Digit
Resolution0.1ºC
Defaulit OutputUSB
Optional Output±10mv/ºC(0ºC=0mv)or 4-20mA
Measurnment PrincipleChilled Mirror
RefrigerationSemiconductor Refrigeration
Inlet Flow15~60L/h,Generally 30~40L/h
Inlet Pressure10mbar~10bar(1kpa~1Mpa)
Response Time2ºC/Second(Maximum)
Voltage220V AC±10% 50/60HZ
PumpOptional Accessory
Mirror Check

Press the Conversion Key to mirror check mode(‘CH’ on the display),and
check manually

Instrument CheckPress the Test Cooling Key,open the measurment probe,and check manually at mirror check mode
ConsumptionAbout 160 Watts
Temperature0~50ºC
Humidity<90%,No Condensation
Dimension342(W)x140(H)X326(D) mm
WeightAbout 7.22kg
Standard accessoriesMain Unit
Inlet Tube(FEP,3m),With Connector
Instruction Manual
Packaging Box
Optional AccessoriesRS-232C Data Cable with Software
