Product Details:
Payment & Shipping Terms:
|
| Belt Size: | 920×100mm | Opening Size: | 80×150mm |
|---|---|---|---|
| Speed: | 1400 R/min | Electromotor Power: | 0.55kW |
| Highlight: | non destructive testing machine,fruit hardness tester |
||

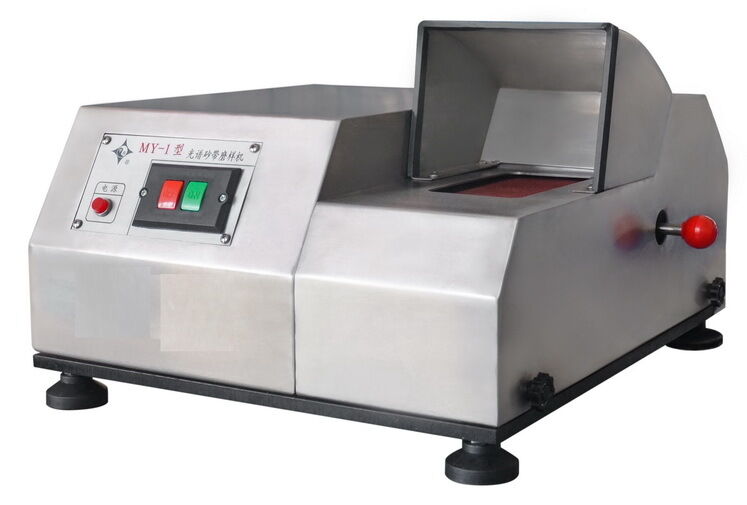

Spectrum Abrasive Belt Grinding Machine MY-1 with Fully Enclosed Stainless Steel
Brief Introduction:
In the metallographic sample preparation and spectral analysis application, the grinding is an essential and important procedure.
MY-1 is made of fully enclosed stainless steel. There is a water tank below the abrasive belt which could take the dirt into the water. It can adjust the tightness of the abrasive belt, which is easy to operate and maintain, safe and reliable.
Technical Specifications:
| Model | MY-1 |
| Center Distance of Rolling Drum | 310mm |
| Abrasive Belt Size | 920×100mm |
| Opening Size | 80×150mm |
| Speed | 1400 r/min (480m/min) |
| Electromotor Power | 0.55kW |
| Power Supply | 380V, 50Hz, 5A,Three-phase four-wire |
| Dimensions | 470×500×300mm |
| Net Weight | 55kg |
Packing List:
| Name | Specification | Qty |
| Machine Body | 1 set | |
| Abrasive Belt | 920×100mm | 1 pc |
| Usage Instruction Manual | 1 copy |
