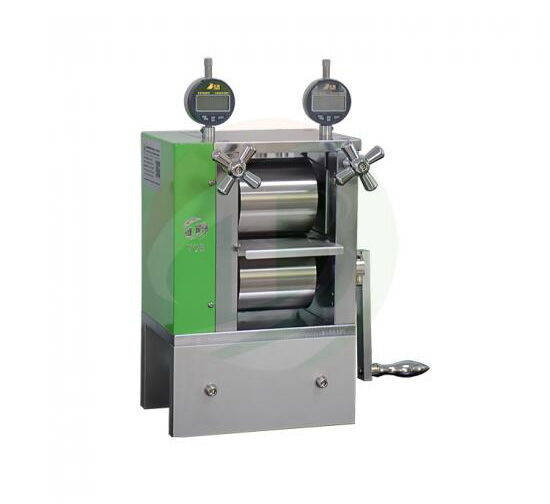

Precision 4" (100mm) Width Manual
Rolling Press Machine with Dual Micrometer For Lithium Battery Electrode Calendering
Brief Introduction:
The TOB-SG-100L Manual Rolling Press Machine is a precision laboratory calendering equipment designed for lithium-ion battery electrode processing.
It is mainly used to adjust electrode thickness and increase active material density after coating and drying.
Equipped with high-hardness rollers and a dual micrometer adjustment system, this machine ensures excellent rolling accuracy and consistency.
Its compact structure and easy operation make it an ideal solution for battery R&D laboratories and small-scale material testing.
Key Features:
● Optimized for Battery Electrode Calendering
Designed specifically for lithium-ion battery electrode rolling, improving density and electrochemical performance.
● High Precision Adjustment
Dual micrometers enable precise thickness control within 0–2mm, with rolling accuracy up to ≤±0.005mm.
● Durable Hardened Rollers
Φ96mm rollers made of hardened tool steel (HRC > 60) with chromium plating ensure long service life and smooth surface finishing.
● Compact Lab Design
Space-saving structure, easy manual operation, suitable for laboratory environments.
● Wide Material Compatibility
Applicable to battery electrodes and various metal materials such as copper, aluminum, gold, and silver.
Typical Applications:
● Lithium-ion battery electrode calendering
● Electrode thickness adjustment after coating
● Battery material density improvement
● Laboratory-scale metal rolling
● R&D and pilot-scale production
| Model | TOB-SG-100L 4" Width(100mm) Manual Rolling Press Machine | ||||||||||||||||
| Warranty | One year | ||||||||||||||||
| Structure |
1, Heavy duty steel frame, gears and handle
2, Φ96mm Dia. x 100mm width Rollers made from hardened tool steel (HRC > 60) with Cr electroplated coating
3, Dual micrometer for accurate thickness adjustment in the range 0 - 2 mm Maximum |
||||||||||||||||
| Roller |
Dimensions: 96mm(Dia.) x 100mm(W) |
||||||||||||||||
| Rolling press accuracy | ≤±0.005 | ||||||||||||||||
| Rolling press thickness | 0-2mm adjusted with Dial gauge | ||||||||||||||||
| Rolling press width | Max 100mm | ||||||||||||||||
| Product Dimensions | 350 mm(L) x 240mm(W) x 350mm(H) (14" x 9.5" x 14") | ||||||||||||||||
| Weight | 45kg (100 lbs) | ||||||||||||||||
Application Notes |
This roller is specially designed for battery R&D in terms of its advantages as affordable, compact and precise.
1, Must use to clean and dry rollers' surfaces after each use to avoid rusting;
2, Coated Rust-proof oil if machine were to be unused for a long period of time;
3, The minimum thickness of the rolled sheet should depend on the physical property of the materials.
Here are some results from our test:
Sample testing is available upon customer's request |
