Accuracy: | ±0.2% FS ±1 Digit | Measurement State: | Peak Value Measurement, Real Time Measurement |
---|---|---|---|
Power Off: | 10 Minutes Auto Power Off, Manual Power Off | Safe Load: | 150% FS ( Buzzer Alarm Over 110% FS ) |
Data Output: | USB, Bluetooth | Power Supply: | 2 X 1.5 AA( UM-3 ) Battery Or 6VDC Power Supply |
Highlight: | non destructive testing machine,fruit hardness tester |

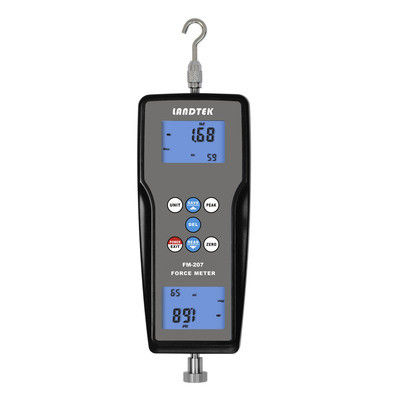

Spec:The digital force gauge is a kind of simple and convenient functional instrument for high-accuracy push force and pull force test.It is widely used in electronics,building hardware,textile,auto parts,
Features
* High accuracy and high resolution.
* Digital display with no guessing or errors.
* With 4 measurement unit for selection and conversion, N, kg, lb, g.
* With peak value hold function.
* With data memory function, can memorize 99 groups of data.
* With 10 minutes auto power off and manual power off.
* Power can be supplied by either alkaline battery or 6V DC power.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Specifications
Force Range | ±50 kgf |
±490 N | |
±110 Lbf | |
Resolution | 0.01 kgf |
0.1 N | |
0.1 Lbf | |
Accuracy | ±0.2% FS ±1 Digit |
Unit | Kgf, gf, N, Lbf |
Measurement State | Peak Value Measurement, Real Time Measurement |
Display | 2 Reversed 4 Digit LCD |
Power Off | 10 Minutes Auto Power Off, Manual Power Off |
Backlight | Blue Backlight |
Safe Load | 150% FS ( Buzzer Alarm Over 110% FS ) |
Data Output | USB, Bluetooth |
Power Supply | 2 x 1.5 AA( UM-3 ) Battery or 6VDC Power Supply |
Operating Conditions | Temperature: 0 ~ 40°C |
Humidity: <80% | |
Surrounding | No Vibration Source or Corrosive Medium Around |
Weight | 390 g |
Size | 211 x 80 x 36 mm |
Accessories
Standard Accessories | Digital Force Gauge | |
Pulling Hook | ||
Flat Tip | ||
Cone Tip | ||
V-shaped Groove Tip | ||
V-shaped Wedge Tip | ||
Lengthening Connection Rod | Screw Rod | |
Cap Nut | ||
Manual | ||
Carrying Case | ||
Optional Accessories | CD | |
USB Data Cable | ||
Bluetooth Adapter | ||
Power Adapter | ||
Force Gauge Stand |
