| Force Range: | ±200 Kgf/ ±1960 Gf/ ±440 N | Accuracy: | ±0.2% FS /±1 Digit |
|---|---|---|---|
| Measurement State: | Peak Value Measurement, Real Time Measurement | Power Off: | 10 Minutes Auto Power Off, Manual Power Off |
| Safe Load: | 150% FS ( Buzzer Alarm Over 110% FS ) | Power Supply: | 2 X 1.5 AA( UM-3 ) Battery Or 6VDC Power Supply |
| Highlight: | non destructive testing machine,fruit hardness tester |
||

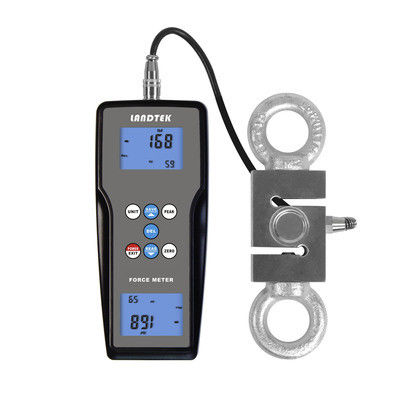

Spec:The digital force gauge is a kind of simple and convenient functional instrument for high-accuracy push force and pull force test.It is widely used in electronics,building hardware,textile,auto parts,
Features
* High accuracy and high resolution.
* Digital display with no guessing or errors.
* With 3 measurement unit for selection and conversion, N, kg, lb.
* With peak value hold function.
* can memorize 99 groups of data.
* With 10 minutes auto power off and manual power off.
* Either alkaline battery Power supply or 6V DC power.
* Use USB cable or Bluetooth adapter for data output.
Specifications
| Force Range | ±200 kgf |
| ±1960 gf | |
| ±440 N | |
| Resolution |
0.001 kgf ( <100 kgf ) 0.1 kgf ( ≥100 kgf ) |
|
0.1 N ( <1000N ) 1 N ( ≥1000 N ) |
|
| 0.1 Lbf | |
| Accuracy | ±0.2% FS ±1 Digit |
| Unit | Kgf, N, Lbf |
| Measurement State | Peak Value Measurement, Real Time Measurement |
| Display | 2 Reversed 4 Digit LCD |
| Power Off | 10 Minutes Auto Power Off, Manual Power Off |
| Backlight | Blue Backlight |
| Safe Load | 150% FS ( Buzzer Alarm Over 110% FS ) |
| Data Output | USB, Bluetooth |
| Power Supply | 2 x 1.5 AA( UM-3 ) Battery or 6VDC Power Supply |
| Operating Conditions | Temperature: 0 ~ 40°C |
| Humidity: <80% | |
| Surrounding | No Vibration Source or Corrosive Medium Around |
| Weight | 1165 g |
| Case Size | 175 x 80 x36 mm |
| Senor Size | 181 x 54 x 30 mm |
Accessories
| Standard Accessories | Digital Force Gauge |
| Sensor ( M12 Screw Hole ) | |
| 2 Suspension Links | |
| Manual | |
| Carrying Case | |
| Optional Accessories | CD |
| USB Data Cable | |
| Bluetooth Adapter | |
| Power Adapter |
