Product Details:
Payment & Shipping Terms:
|
| Stable Structure: | By Using Special Sand-casting Process, Stable Structure That Does Not Deform | Test Forces: | Equipped With 10 Levels Of Test Force, Capable Of Testing 10 Types Of Brinell Scales, With A Wider Testing Range |
|---|---|---|---|
| Low Noise: | Low Noise During The Testing Process, Suitable For Use In Various Laboratories | Micro Computer Control: | Allowing Control Of Automatic Loading And Unloading, Automatic Force Compensation, And Automatic Measurement, Ensuring Reduction Of Human Operational Errors, Convenient And Efficient |
| Test Software: | Can Be Used With Computer Brinell Image Measurement System Software, Greatly Improving Work Efficiency. | Force Sensor: | High Testing Accuracy, Stable Performance, Fast Acceleration, And High Efficiency |
| Highlight: | non destructive testing machine,non destructive testing instruments |
||

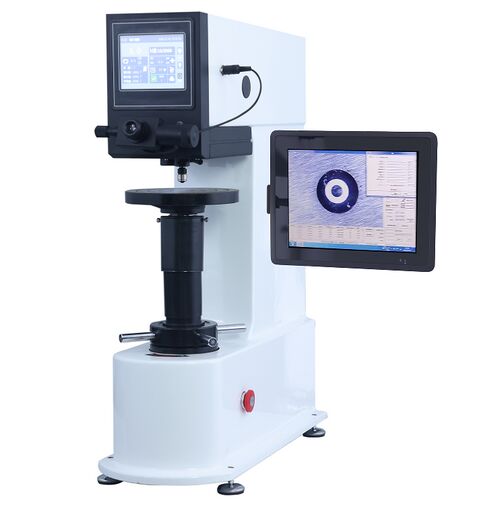

Automatic Measurement Vision Brinell Hardness Tester HBS-3000MVZ with Dual Touch Screens
Main Features:
1. Equipped with 10 levels of test force, capable of testing 10 types of Brinell scales, with a wider testing range;
2. Stable structure, by using special sand-casting process, stable structure that does not deform;
3. Closed-loop sensor loading microcomputer control system, high testing accuracy, stable performance, fast acceleration, and high efficiency;
4. Microcomputer control software system, allowing control of automatic loading and unloading, automatic force compensation, and automatic measurement, ensuring reduction of human operational errors, convenient and efficient;
5. The machine generates very low noise during the testing process, suitable for use in various laboratories;
6. The machine can be used with computer Brinell image measurement system software, greatly improving work efficiency.
Technical Specifications:
| Model | HBS-3000MVZ |
| Brinell Scales | HBW2.5/62.5, HBW10/100, HBW2.5/187.5, HBW5/125, HBW10/250, HBW10/500, HBW5/750, HBW10/1000, HBW10/1500, HBW10/3000 |
| Test Forces | 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N) |
| Vertical Space | 200mm |
| Length Resolution | 0.625µm |
| Dwell Time | 0~60 seconds |
| Brinell Range | 8~650HBW |
| Magnifications | 20X |
| Executive Standards | EN ISO 6507,EN ISO 6506,ASTM E-384,ASTM E-10-08,ASTM E-384 GB/T231.2,JJG150 |
| Depth Throat | 135mm |
| Hardness Reading | LCD, built-in Printer |
| Power Supply | AC220V,50~60Hz |
| Dimension | 580*250*780mm |
| Weight | 140kg |
