45°Gloss Meter(Integral Type) GM-4

China 45°Gloss Meter(Integral Type) GM-4 supplier

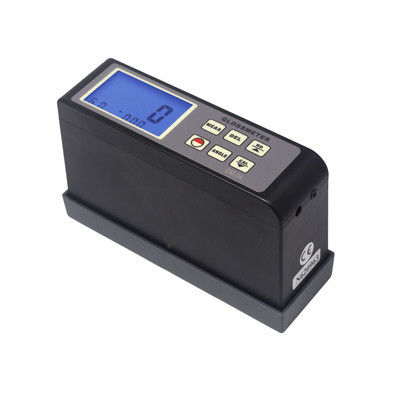

Large Image :  45°Gloss Meter(Integral Type) GM-4

Product Details:

Place of Origin: DONGGUAN
Brand Name: iqualitrol
Certification: CE
Model Number: GM-4

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 10 work days
Payment Terms: T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Display: 4 Digits Backlit LCD Measuring Angle: 45°
Range: 0.1 ~ 200 Gloss Units Accuracy: ±1.0 GU
Repeatability: ±0.5 GU Measuring Area: 7 X 14 Mm(Ellipse)
High Light:

non destructive testing instruments

,

fruit hardness tester



Spec:Glossmetr have different kinds of measurement angles.Generally,20°applies to High Gloss Materials,60°applies to Medium Gloss Materials,85°applies to Low Gloss Materials.



Features

*In’accordance’with’international’standard ASTMD523,ASTWD1455,ASTMC346,ASTMC584,ASTMD2457,DIN ENISO2813,DIN67530,ENISO7668,JISZ8741,MFT30064,TAPPIT480,GB9754,GB9754,GB/T13891,GB7706 and GB8807.Its technical parameters confrom with JJG696-2002.

* Accurate measurement,good repetitiveness.

* Automatic calibration.Small in size,easy to carry.

* Intelligent design,rapid measurements.

* Applies USB,Bluetooth data output.

* Built-in lithium ion rechargeable battery.

* Backlight display,suitable for low light environment.



Specifications

Display 4 Digits Backlit LCD
Measuring Angle 45°
Range 0.1 ~ 200 Gloss Units
Gloss Units GU
Accuracy ±1.0 GU
Resolution 0.1
Repeatability ±0.5 GU
Measuring Area 7 x 14 mm(Ellipse)
Data Memorized 254 Groups
Operating Conditions Temp :0 ~ 40°C
Humidity :< 85% RH
Power Supply 3.7 V Lithium Ion Rechargeable Battery
Dimensions 140 x 45 x 75 mm
Weight 305 g(Including Batteries)
Standard Accessories Main Unit
Holder with Calibration Standard
AC Adapter
Optical Cleaning Cloth
Carrying Case(B04)
Operation Manual
Optional Accessories USB Data Cable with Software
Bluetooth Data Adapter with Software
