Product Details:
Payment & Shipping Terms:
|
| Measuring Range: | 170~960(HLD) | Accuracy: | Display Error±0.8% |
|---|---|---|---|
| Repeatability: | ±0.6% | Memory: | 50Data Can Be Stored And Re-readable |
| Storage Temperature: | -30~60ºC | Power Supply: | 2X1.5V AA(UM-3)Battery |
| High Light: | non destructive testing instruments,fruit hardness tester |
||

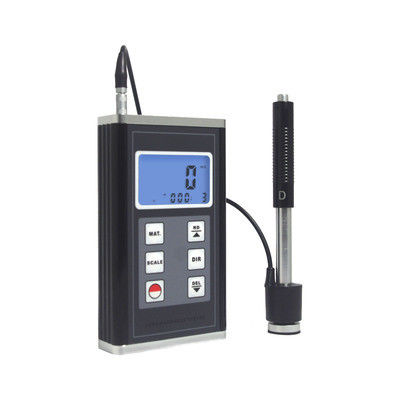

Spec:Measure the hardness of metal workpiece. Applicable to Die cavity of molds, Inspection of bearing and other mass produced parts on a production line.
Features
* Palm size for narrow space.
* Test at any angle, even upside down.
* Direct display of hardness scales HRB, HRC, HV, HB, HS,HL.
* Large memory could store 50 groups including single measured value, impact direction, material and hardness scale etc.
* User recalibration function allowed.
* Manual or automatic shut down.
* Low battery indication.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Material Selection
| Material | Converting Ranges | ||||||
| HL | HRC | HRB | HB | HS | HV | ||
| 30D | 10D | ||||||
| Steel & Cast St. | 300~900 | 20.0~68.0 | 38.4~99.5 | 80~647 | 32.5~99.5 | 80~940 | |
| C.W.Tool Steel | 300~840 | 20.4~67.1 | 80~898 | ||||
| ST.Steel | 300~800 | 19.6~62.4 | 46.5~101.7 | 85~655 | 80~802 | ||
| Gray Cast Iron | 360~650 | 93~334 | |||||
| Nodular Cast Iron | 400~660 | 131~387 | |||||
| Cast Aluminum | 174~560 | 20~159 | |||||
| Brass | 200~550 | 13.5~95.3 | 40~173 | ||||
| Bronze | 300~700 | 60~290 | |||||
| Copper | 200~690 | 45~315 | |||||
Specifications
| Display | LCD | |
| Materials | 9 different common materials(Steel&Cast Steel,C.W.Tool Steel,Stainless Steel,Gray Cast Iron,Nodular Cast Iron,Cast Aluminum,Brass,Bronze,Copper) | |
| Measuring Range | 170~960(HLD) | |
| Accuracy | Display Error±0.8% | |
| Repeatability | ±0.6% | |
| Conversion | HL-HRC-HRB-HB-HV-HSD | |
| Memory | 50Data Can Be Stored And Re-readable | |
| Impact device | Probe D,Weight:75g | |
| Storage Temperature | -30~60ºC | |
| Operating Conditions | Temperature | -10~50ºC |
| Humidity | <90%RH | |
| Power Supply | 2X1.5V AA(UM-3)Battery | |
| Dimensions | 130x76x32mm | |
| Weight | 340g(Not Including Batteries) | |
