| IGrind-844A: | Single Disc, Φ250mm | Sample Qty: | 6pcs, Diameter 30mm |
|---|---|---|---|
| Polishing Head: | Touch Screen | Air Pressure: | Greater Than 0.35Mpa |
| Programs: | Can Store 256 Sets Of Programs | Central Force: | 20–200 Newtons (N) |
| Highlight: | non destructive testing machine,non destructive testing instruments |
||

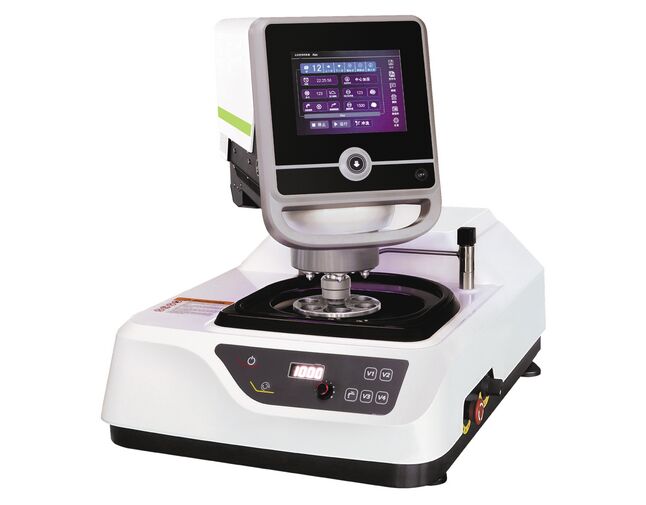

Center Loading Automatic
Grinding Polishing Machine iGrind-844A in Smooth Operation
Download Technical Data: Grinding Polishing Machine iGrind-844A
Brief Introduction:
The iGrind-844A Automatic Metallographic Sample Grinding and Polishing Machine is a high-precision, fully automated system, equipped with a microprocessor controller, this machine enables stepless speed adjustment for both the grinding/polishing disc and the grinding/polishing head, while allowing intuitive and convenient setting of sample preparation pressure and processing time.
Operators can complete the grinding and polishing steps simply by changing the grinding/polishing disc or the metallographic abrasive papers and polishing cloths, thereby enhancing the machine’s versatility and broad applicability.
The iGrind-844A features freely selectable rotation direction of the grinding polishing disc, quick change disc mounting, center-loaded and single-point loading modes, automatic abrasive delivery (with an optional liquid dispenser), as well as smooth operation, high safety and reliability, low noise levels, and a cast-aluminum base that significantly improves the rigidity of the grinding and polishing process.
Technical Specifications:
| Machine power | Single-phase AC 220V 50Hz |
| Input Power | 2.1KW |
| Grinding disc diameter | Φ250mm (standard), option Φ203mm or Φ300mm |
| Polishing disc rotation speed | 0–1000rpm, with an adjustment step 20rpm (The 300mm grinding disc operates at 0–600rpm) |
| 150rpm, 300rpm, 600rpm, 1000rpm (four fixed speed) | |
| Rotation direction | Adjustable clockwise or counterclockwise |
| polishing head speed | 0–150rpm (stepless speed regulation) |
| Single-point force loading | 5–60 N |
| Central Force Loading | 20–200 newtons (N) |
| Number of samples | 6 (standard) |
| Specimen dimensions |
Φ30mm (standard), customizable to φ22mm, φ25mm, or φ40mm |
| Sample preparation time | 0–12 hours |
| Number of programs | Can store 256 sets of programs (grinding and polishing recipes). |
| Compressed air pressure | Greater than 0.35Mpa (set the external pressure regulator filter to 0.5 MPa) |
| External dimensions | 596×714×707mm |
| Net weight | 102kg |
| Model | iGrind-842A | iGrind-842S | iGrind-843A | iGrind-843S | iGrind-844A | iGrind-844S |
| Disc Qty | single-disc | Double disc | single-disc | Double disc | single-disc | Double disc |
| Display | LCD | LCD | LCD | LCD | Touch Screen | Touch Screen |
| Sample Qty | 4pcs, φ30mm | 4pcs, φ30mm | 6pcs, φ30mm | 6pcs, φ30mm | 6pcs, φ30mm | 6pcs, φ30mm |
| Sample Loading | pneumatic single-point | pneumatic single-point | pneumatic single-point | pneumatic single-point | center-loading, pneumatic single-point | center-loading, pneumatic single-point |
