| Measurement Range: | 7~40N/cm | Display Range: | 0~50N/cm |
|---|---|---|---|
| Resolution: | 0.1 | Fiducial Error: | 5% |
| Operating Condition: | Temp:0~40ºC Humidity:10~90%RH | Power Supply: | 4x1.5V AAA Size(UM-4)Battery |
| High Light: | non destructive testing machine,non destructive testing instruments |
||

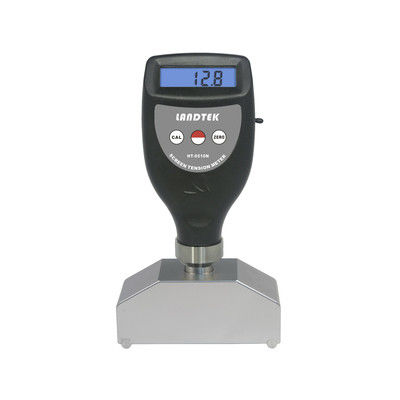

Spec:For screen tension testing. The ideal and necessary tool for production of precise screen and steel mesh.
Features
* Suitable for general wire mesh tension and steel mesh tension measurement.
* Suitable for screen printing and screen stencil measurement, high accuracy. The ideal and necessary tool for production of precise screen and steel mesh. Can avoid the personal or tactile measurement error.
* LCD digital display, eliminating reading error.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Printing Task and Determination of Screen Tension
| Wire Mesh | Printing Task | Tension (N/cm) |
| Ultra High Tension Wire Mesh | Circuit Board and Measuring Scale | 16~20 |
| High Strength Wire Mesh | Multicolor and Four-Color Printing (Mechanical Printing) | 16~20 |
| High Precision Ultra Fine Wire Mesh | High Precision Multi Layer Circuit Printing | 25~30 |
| High Precision Polyester Net (Standard Monofilament) | Multicolor and Four-Color Printing (Manual Printing) | 8~12 |
| Ordinary Polyester Net (Standard Monofilament) | Flat Object | 8~12 |
| Nylon Mesh | Curve Surface or Rough Object | 8~12 |
Commonly Used Screen Maximum Tension
Data in the table is based on testing condition of Swiss thick gauze. Concrete data depends on the quality of network machine. With good quality network machine, the gauze will not crack even in the highest tension. but if it exceeds the maximum tension, the gauze crackes easily, please reference when trapping net.
| Maximum Tension | Regulating Pressure | ||
| 77T | 200 mesh | 30N/cm | 7kg/cm |
| 90T | 230 mesh | 25N/cm | 6.5kg/cm |
| 100T | 250 mesh | 23N/cm | 6kg/cm |
| 120T | 300 mesh | 21N/cm | 5.7kg/cm |
| 140T | 350 mesh | 20N/cm | 5.3kg/cm |
| 165T | 420 mesh | 18N/cm | 5kg/cm |
| Note: The above data is the reference data in the use of a factory pneumatic net machine, the specific operation according to actual circumstances. | |||
Specifications
| Measurement Range | 7~40N/cm |
| Display Range | 0~50N/cm |
| resolution | 0.1 |
| Fiducial Error | 5% |
| Operating Condition | Temp:0~40ºC Humidity:10~90%RH |
| Power Supply | 4x1.5V AAA Size(UM-4)Battery |
| Dimensions | 175x95x40mm |
| Weight | 490g(Not Including Batteries) |
