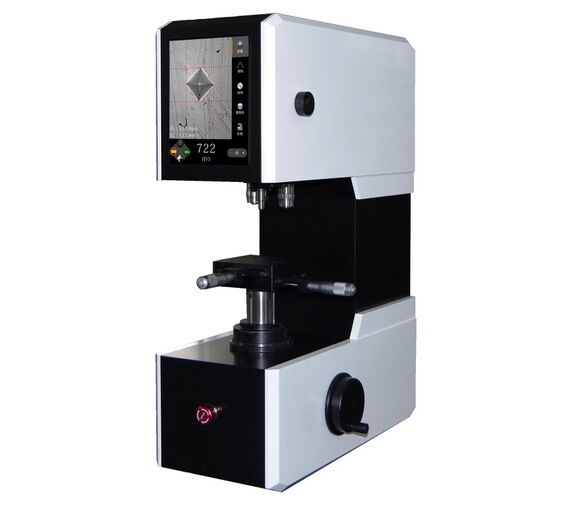

Embedded Imaging Technology Intelligent Vision Vickers Hardness Tester MHVS-10V


Embedded Imaging Technology Intelligent Vision Vickers Hardness Tester MHVS-10V

Features of the Visual System:
1. Objectivity: The visual system is objective, and the analysis results are not influenced by subjective factors.

2. High grayscale resolution: The human eye generally perceives 64 levels of gray, while machine vision can reach up to 256 levels of gray.

3. The iqualitrol exclusive embedded imaging technology replaces traditional measuring eyepieces, using a camera and display screen mode to directly show indentation images on the screen.

4. Type of vision chip: Industrial-grade dedicated high-definition camera.

5. Comprehensive adjustments for contrast, brightness, white balance, etc.

6. Visual analysis mode simplifies manual operations, reduces operator fatigue, and makes measurement data more intuitive and convenient.

7. Optimizes every step; compared with traditional hardness testers, overall performance is greatly improved, saving 50% of the time.

Technical Specifications:

Advantages of the Visual System Compared to Eyepiece Measurement

1, Direct measurement on the surface to be measured, eliminating visual errors. Traditional hardness testers use eyepiece measurements, where the scale lines and indentations are not on the same plane.

From different viewing angles, the positions of the scale and indentation may have parallax, leading to variations in measurements by different angles and different operators.

2, High measurement accuracy: no mechanical eyepiece backlash issues. The mechanical eyepiece micrometer has a scale resolution of about 10 μm and suffers from mechanical backlash, requiring strict measurement procedures.

The visual system's image sensor has a pixel pitch of 7.5 μm, providing higher accuracy and better measurement consistency.

3, Provides two-dimensional simultaneous measurement with multiple measurement methods, simplifying the measurement process and increasing measurement speed.

4, Supports the rectangular tangent measurement method.

5, Eliminates visual fatigue and reduces measurement labor intensity. IQUALITROL vision uses a 65K true-color TFT LCD screen, which is comfortable for viewing without fatigue and allows multiple people to measure simultaneously.
