| Model: | Iqualitrol CAHVST-2ZXY | Test Force: | 0.01kgf To 2kgf |
|---|---|---|---|
| Display: | 7-inch LCD Touch Display Built-in Vickers Software | Focus: | Automatic Focus, No Need For Manual Lifting Screw Focusing |
| X-Y Table: | Driven By Software Control | Test Space: | Height 90* Depth 120mm, |

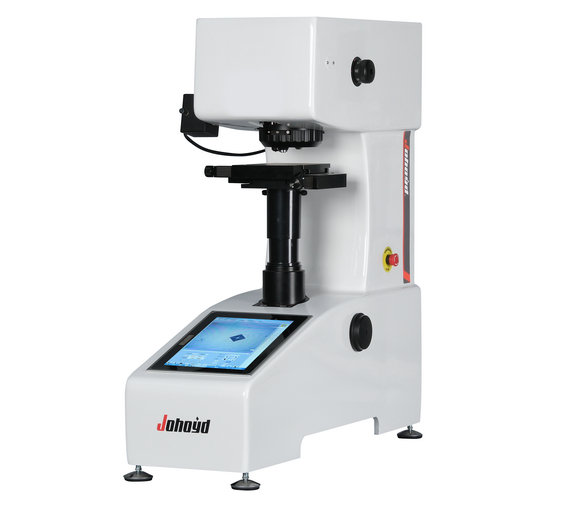

Fully automatic Micro Vickers hardness tester
CAHVST-2ZXY with built-in Measuring Software
Brief Introduction:
The iqualitrol fully automatic micro hardness tester CAHVST-2ZXY is mainly used for measuring small and thin test pieces and brittle hardware.
CAHVST-2ZXY can be widely used in various metals (ferrous metals, non-ferrous metals, castings, alloy materials) by selecting various accessories or upgrading various structures. Etc.), metal structure, metal surface processing layer, electroplated layer, hardened layer (oxidation, various infiltration layers, coating), heat-treated test piece, carbonized test piece, quenched test piece, minute part of phase inclusion, glass, agate Testing of brittle and hard non-metallic materials such as artificial gemstones and ceramics.
CAHVST-2ZXY is especially suitable for measuring the hardness gradient profile of workpieces in large quantities and the hardness test of specified parts.
The automatic stage controlled by the built-in stepping motor has a variety of control modes through mouse click control, high positioning accuracy, good repeatability, fast moving speed and high work efficiency;
Technical Specifications:
| Micro hardness scale | HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1, HV2 |
| monitor | 7” LCD monitor |
| Test force(gf) | 10, 25, 50, 100, 200, 300, 500, 1000, 2000 |
| Load control | Automatic (load/hold/unload) |
| Test force retention time | 5～60 seconds |
| Test force selection | External force selection knob, the test force is automatically displayed on the 7-inch LCD touch display |
| Objective magnification | 10×, 40× |
| Optical channel | Double optical channel (eyepiece and CCD camera channel) |
| Optical system (dual optical channel, no need to switch) |
1. Automatic digital encoder; 2, total magnification (μm): 100 × (observation), 400 × (measurement); 3. Measurement range (μm): 200; 4, resolution (μm): 0.01 |
| Hardness measurement range | (5-3000)HV |
| Data output (optional) | Built-in printer, test data can also be saved to USB flash drive for storage analysis |
| Maximum height of the test piece | 90mm |
| Maximum width of test piece |
120mm, indenter center to machine wall distance) |
| voltage | AC220V/50HZ |
| Weight | 40kg |
