Turret Control: | Auto Turret Controller By Software | Focus Control: | Controlled By Software For Z Axis Lifting |
---|---|---|---|
Indentation: | Display Hardness Images In Real Time, Store And Print Images, And Print Multiple Times | Path Settings: | Provide A Variety Of Loading Modes Including Along The Line, Along The Edge Angle, Along The Edge Of The Curve |
Automatic Edge Scan: | Automatically Scan Along The Edge Of The Sample And Automatically Find Inflection Points Such As Crest Roots | Data Statistics: | Automatic Calculation Of The Average Value, Variance, Cp, Cpk And Other Statistical Values Of Measured Hardness |

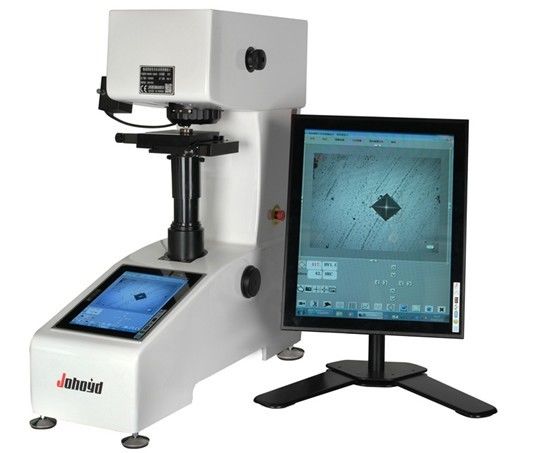

Fully Automatic Micro Vickers Hardness Tester PCAHVST-1000ZXY
Brief Introduction:
The iqualitrol fully automatic micro hardness tester is mainly used for measuring small and thin test pieces and brittle hardware.
PCAHVST-1000ZXY can be widely used in various metals (ferrous metals, non-ferrous metals, castings, alloy materials) by selecting various accessories or upgrading various structures. Etc.), metal structure, metal surface processing layer, electroplated layer, hardened layer (oxidation, various infiltration layers, coating), heat-treated test piece, carbonized test piece, quenched test piece, minute part of phase inclusion, glass, agate testing of brittle and hard non-metallic materials such as artificial gemstones and ceramics.
It is especially suitable for measuring the hardness gradient profile of workpieces in large quantities and the hardness test of specified parts.
The automatic stage controlled by the built-in stepping motor has a variety of control modes through mouse click control, high positioning accuracy, good repeatability, fast moving speed and high work efficiency;
Technical Specifications:
Micro hardness scale | HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 |
monitor | 7" LCD monitor |
Test force | 10, 25, 50, 100, 200, 300, 500, 1000gf |
Load control | Automatic (load/hold/unload) |
Dwell time | 5~60s |
Test foce selection | External force selection knob, the test force is automatically displayed on the 7-inch LCD touch display |
Objective magnification | 10×, 40× |
Optical channel | Double optical channel (eyepiece and CCD camera channel) |
Optical system (dual optical channel, no need to switch) |
1. Automatic digital encoder; 2, the total magnification (μm): 100 × (observation), 400 × (measurement); 3. Measurement range (μm): 200; 4, resolution (μm): 0.01 |
Hardness measurement range | (5-3000)HV |
Data output (optional)) | Built-in printer, test data can also be saved to USB flash drive for storage analysis |
Maximum height of the test piece | 90mm |
Maximum width of test piece | 120mm, indenter center line to machine wall distance) |
voltage | AC220V/50HZ |
Weight | 40kg |
