Model: | Knoop Indenter | Test Force: | 10gf To 1Kgf |
---|---|---|---|
Application: | Pyramid Shaped Diamond Is Used For Testing In The Knoop Scale | Knoop Indentation: | High Resolution For Measurement And Less Deep Indentation |

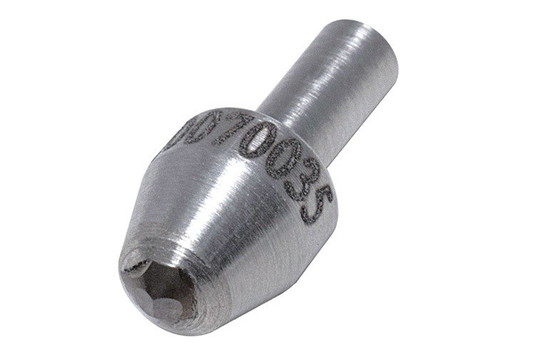

Knoop Indenter Is a Pyramid-Shaped Diamond Indenter for
IQUALITROL Micro Hardness Testers
Main Features:
A pyramid shaped diamond is used for testing in the Knoop scale. This indenter differs from the pyramid indenter used on a Vickers test.
The Knoop indenter is more elongated or rectangular in shape. The Knoop method is commonly used when indentations are closely spaced or very near the edge of the sample.
The width of the Knoop indentation can provide more resolution for measurement and the indentation is also less deep. Consequently, it can be used on very thin materials.
In a Knoop test, a predetermined test force is applied with a pyramid-shaped diamond indenter for a specified dwell time period.
Various diamond indenters, tungsten carbide ball indenters and steel ball indenters are suitable for all types of iqualitrol hardness testers; indenters of various special specifications and sizes can be customized made.
