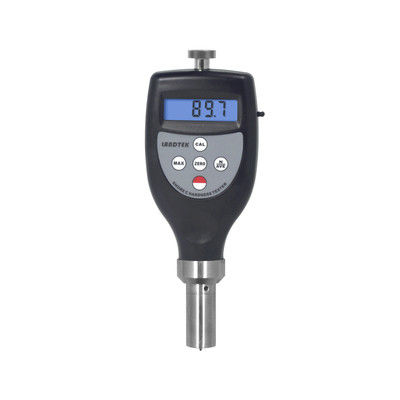

Shore Hardness Tester HT-6510D

China Shore Hardness Tester HT-6510D supplier

Large Image :  Shore Hardness Tester HT-6510D

Product Details:

Place of Origin: DONGGUAN
Brand Name: iqualitrol
Certification: CE
Model Number: HT-6510D

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 10 work days
Payment Terms: T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Parameters: Tested Result/Mean Value/Max.Value Display Range: 0~100HA(HB/HC/HD/HE/HDO/HO/HOO)
Measurement Range: 10~90HA(HB/HC/HD/HE/HDO/HO/HOO) Accuracy: ≤±1H
Operating: Temperature:0~50ºC Humidity:<80%RH Dimensions: 162x65x28 Mm
High Light:

non destructive testing machine

,

fruit hardness tester



Spec:Used to determine the indentation hardness of materials ranging from cellular products to rigid plastics.



Features

* It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.

* With average calculate function.

* Peak value deposit function.

* Under-voltage alarm function.

* Use USB data output to connect with PC.

* Provide Bluetooth data output choice.



Models & Applications

Model Indenter Tested Materials Hardness Value
A 0.79 Truncated Cone Soft Rubber, Elastomers, Natural Rubber Products, Neoprene, Resin, Polyester, Soft PVC,Lleather, etc. 20 ~ 90 A
B R 0.1 Cone Middle Hard Rubber Materials, Typewriter Rollers, etc. Above 90 A, Below 20 D
C 0.79 Truncated (Frustum) Cone Plastics and Middle Hard Rubber Materials Above 90 B, Below 20 D
D R 0.1 Cone Fibre Plastics, Hard Rubber, Hard Plastic Materials, Plexiglas,Stiff Thermo Plastics, Formica, Print Roller, Vinyl-plate, Cellulose Acetate, etc. Above 90 A
DO R 1.2 Spherical Radius Plastics and Middle Hard up to Hard Rubber Materials Above 90 C, Below 20 D
O R 1.2 Spherical Radius Soft Elastic Materials, Print Rollers, Middle Firm Textile Fabrics, Nylon, Orlon, Perlon, Rayon Below 20 DO
OO R 1.2 Spherical Radius Sponge- and Cellular Rubber, Foam Rubber, Silicone, Gel-like Materials Below 20 O
E R 2.5 Spherical Radius Hard Sponge, EVA Above 90 DO, Below 20 D



Specifications

Model HT-6510(A/B/C/D/E/O/DO/OO)
Parameters Tested Result/Mean Value/Max.Value
Unit HA/HB/HC/HD/HE/HDO/HO/HOO
Display Range 0~100HA(HB/HC/HD/HE/HDO/HO/HOO)
Measurement Range 10~90HA(HB/HC/HD/HE/HDO/HO/HOO)
Accuracy ≤±1H
Resolution 0.1H
Battery Indicator Low Battery Indicator
Auto Switch Off
Operating Temperature:0~50ºC Humidity:<80%RH
Power Supply 4x1.5V AAA(UM-4)Battery
2x1.5V AAA(UM-4)Battery(Stand Available)
Dimensions 162x65x28 mm
Weight 170g
Standard Accessories Main Unit
Pin Length Teat Block
Carrying Case(B04)
Operation Manual
Optional Accessories Shore Hardness Tester Measurement Stand
Rubber Hardness Test Block(A/D Type)
USB Data Cable with Software
Bluetooth Data Adapter with Software



Model & Hardness

Shore Hardness Tester HT-6510D
