Product Details:
Payment & Shipping Terms:
|
| Test Report: | Can Generate WORD Or EXCEL Reports, Which Can Be Directly Saved Or Output To An External Printer | Test Software: | Calibrate, Manually Fine-tune, Set Upper And Lower Limit Alarms And Other Functions |
|---|---|---|---|
| Turret: | Auto Turret, Three Indenters & Two Objective Lenses | Data Output: | USB Interface, VGA Interface And Network Port |
| Automatic Platform: | Table Size: 320×210mm; Travel: 170×110mm | Touch Screen: | For Parameter Setting And Result Display More Intuitive And Convenient To Operate |
| Highlight: | non destructive testing instruments,fruit hardness tester |
||

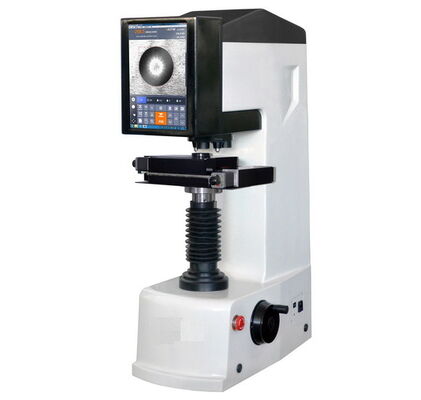

XHBT-3000V Fully Automatic Three Indenters Digital Brinell Hardness Tester
Download Technical Data: Brinell Hardness Tester XHBT-3000V
Brief Introduction:
The iqualitrol XHBT-3000V equips with X-Y automatic platform. It can set coordinate trajectories for positioning. After starting the measurement, the platform automatically rises, and after applying the test force, it returns to the focal plane for direct measurement, achieving one-key automation functionality.
Three indenters & two objective lenses have been installed on XHBT-3000V;
The test force is directly controlled by the force sensor.
Test process is electrically controlled by the CPU, and the objective lens and the indenter are automatically switched.
The built-in touch screen and microcomputer make parameter setting and result display more intuitive and convenient to operate.
Technical Specifications:
| Model | XHBT-3000V | |
| Test forces | kgf | 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf |
| N | 612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N |
|
| Brinell Hardness Ranges | 3.18～653HBW | |
| Loading Control | Automatic (Loading/Dwell/Unloading) | |
| Hardness Reading | Touch Screen, Automatic Measuring | |
| X-Y Platform | Table size: 320×210mm; travel: 170×110mm, thickness: 95mm; step 1μm, repeatability 10μm. This platform can perform multi-point settings, completing multi-point automatic testing functions with one-click operation. | |
| Camera Pixels | 3MP | |
| Hardness Conversion | HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBS, HBW | |
| Data Output | 3×USB, 1×VGA, 1×LAN | |
| Turret | Automatic Turret (Three Indenters, Two Objectives) | |
| Objectives | 1x, 2x | |
| Field of View (FOV) | 1x: 6mm, 2x: 3mm | |
| Resolution | 1x: 4.6μm, 2x: 2.3μm | |
| Dwell Time | 0~95s | |
| Max Height of Specimen | 160mm | |
| Depth Throat | 150mm | |
| Power supply | AC220V, 50Hz | |
| Execute Standard | ISO 6506, ASTM E10, JIS Z2243, GB/T 231.2 | |
| Dimension | 630×410×1170mm, Packing 830×510×1470mm, Gross 240kg | |
