Product Details:
Payment & Shipping Terms:
|
| Data Output: | Built-in Printer, RS232 Data Output Interface | Rockwell Scales: | Test 15 Kinds Of Rockwell And 15 Kinds Of Superficial Rockwell Hardness Scales |
|---|---|---|---|
| Structure: | Strong Rack Construction, Good Rigidity | Display: | High-definition LCD Touch Screen, The Menu Operation Interface |
| Value Compensation: | Revise The Test Value Of Cylinder, Sphere Load Selection And Scale Of Hardness Selection Interlock | Loading System: | Full Automatic Closed Loop Sensor Loading System, Testing Bench Fixing, Achieving High Precision And Fast Test |
| Highlight: | non destructive testing instruments,fruit hardness tester |
||

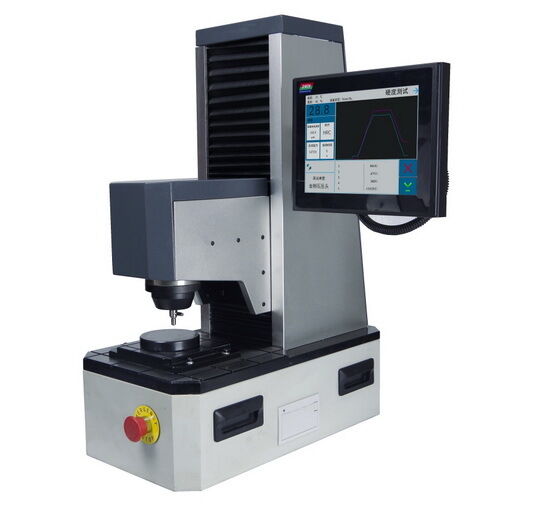

Automatic Rockwell Hardness Tester JMHRS-150 with Indenter Lifting Structure
Download Technical Data: iqualitrol Rockwell Hardness Tester JMHRS-150
Brief Introduction:
The iqualitrol full automatic and semi-automatic Rockwell hardness tester JMHRS-150 apply indenter lifting structure and advanced closed loop sensor control technology.
Loading system uses the high precision sensor and central controller forming a closed loop circuit to realize the continuous tracking and control burner process.
Sounding system adopts high precision displacement sensor, which can obtain hardness resolution at 0.1HR.
The up–and–down motion of indenter can test hardness when object stage was fixed. Fixed testing bench can eliminate coaxial error due to traditional lead screw rotating up and down, greatly improve the test precision and repeatability, also increases the stability and efficiency of the machine run.
Technical Specifications:
| Model |
JMHRS-150 for Regular Rockwell Scales JMHRS-45 for Superficial Rockwell Scales JMHRS-145 for both Regular & Superficial Rockwell Scales |
| Initial test force | 3kgf, 10kgf |
| Main test force | 15kgf, 30kgf, 45kgf, 60kgf, 100kgf, 150kgf |
| LCD display | Rockwell scale, The total test, Hardness value, Cover charge time, Upper and lower set point GO/NG instructions |
| Add unloading way | Closed loop load control technology (loading, dwell and unloading) |
| Scale selection | By Touch screen |
| Scale conversion | Conform ASTM E 140 |
| Dwell Time | 1-99 seconds |
| Data output | built-in printer, RS232 interface |
| Executive Standards | ASTM E18, ISO6508, GB/T230.2 |
| Vertical Space | 300mm, Max Height of Specimen |
| Depth throat | 175mm |
| power supply | 110/220V AC, 60~50Hz |
| Dimension | 55*29*74cm |
| Weight | 85Kg |
