| Advantages: | Accurate, Reliable, And Durable | Data Output: | Built-in Printer For Outputting Test Data And Statistical Data |
|---|---|---|---|
| Sturdy Structure: | Sturdy Construction With Good Rigidity; Large Testing Space, Suitable For Placing Larger Specimens | LCD Display: | Touchscreen Interface, Easy To Operate; Selectable Hardness Test Dwell Time |
| Loading Control: | Motor Loading, Dwell, Unloading | Test Space: | Vertical 170mm, Throat 165mm |
| Highlight: | non destructive testing instruments,fruit hardness tester |
||

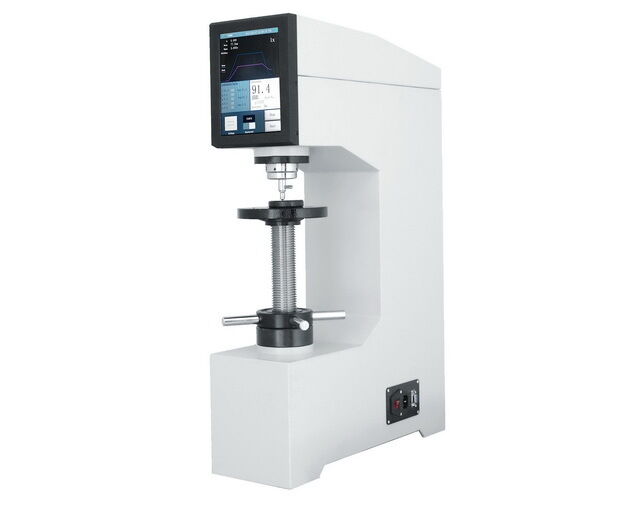

Touch Screen Rockwell Hardness Tester MHRS-150 with RS-232 Built-in Printer
Main Features:
1. IQUALITROL High-precision step control system;
2. Touchscreen interface, easy to operate; selectable hardness test dwell time;
3. HR, HB, HV conversion scales;
4. Built-in printer for outputting test data and statistical data; RS-232 data output interface for serial communication;
5. Accurate, reliable, and durable; sturdy construction with good rigidity; large testing space, suitable for placing larger specimens;
6. Suitable for hardness testing of quenched, tempered, annealed, and cold-hardened castings, forgeable castings, hard alloy steels, aluminum alloys, copper alloys, bearing steels, etc.
Technical Specifications:
| Model | MHRS-150 | MHRS-45 | MHRS-145 |
| Initial Test force | 10kgf | 3kgf | 3kgf, 10kgf |
| 98.07N | 29.4N | 29.4N, 98N | |
| Total test force | 60kgf, 100kgf, 150kgf | 15kgf, 30kgf, 45kgf |
15kgf, 30kgf, 45kgf, 60kgf, 100kgf, 150kgf |
| 588.4N, 980.7N, 1471N | 147.1N, 294.2N, 441.3N |
147.1N, 294.2N, 441.3N, 588.4N, 980.7N, 1471N |
|
| Rockwell scales | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV | HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y |
HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y |
| Hardness ranges |
20-95HRA 10-100HRB 10-70HRC 40-77HRD 70-100HRE 60-100 HRF 30-94 HRG 80-100 HRH 40-100HRK 50-115HRL, 50-115HRR 50-115HRP 50-115HRS 50-115HRV |
70-94HR15N, 42-86HR30N, 20-77HR45N, 67-93HR15T, 29-82HR30T, 10-72HR45T |
20-95HRA, 10-100HRB, 70-100HRE, 60-100HRF, 30-94HRG, 80-100HRH, 40-100HRK, 50-115HRL, 70-94HR15N, 42-86HR30N, 20-77HR45N, 67-93HR15T, 29-82HR30T, 10-72HR45T |
| Hardness conversion | HV, HB, HR | ||
| Executive standard | GB/T230, ISO 6508, ASTM E18 | ||
| Indenters | cone diamond indenter | ||
| Φ1.5875mm ball indenter | |||
| Hardness reading | LCD display, Rockwell scales, total test forces, dwell time | ||
| Data output | built-in printer, RS232 COM | ||
| Loading control | Motor loading, dwell, unloading | ||
| Vertical space | 170mm | ||
| Depth throat | 165mm | ||
| Sample place | Mini diameter 3mm | ||
| Power supply | AC220V±5% 50-60Hz | ||
| Dimension | 490*165*745mm | ||
| Weight | 70kg | ||
