| Loading Technology: | High Precision Step Control Electric Loading Technology | Indenter Lifting Structure: | Suitable For The Testing Of Large-sized Workpieces |
|---|---|---|---|
| Improved Loading: | The Loading Speed Of The Main Test Force Is Very Fast And The Efficiency Is Improved | Software Programming: | High-power Optical Measurement System And Closed-loop Control Technology |
| Force Sensor: | High Precision Force Sensor With Control System | Remote Control: | Simple Operation By Remote Control Of Whole Testing Process |
| Highlight: | non destructive testing machine,non destructive testing instruments |
||

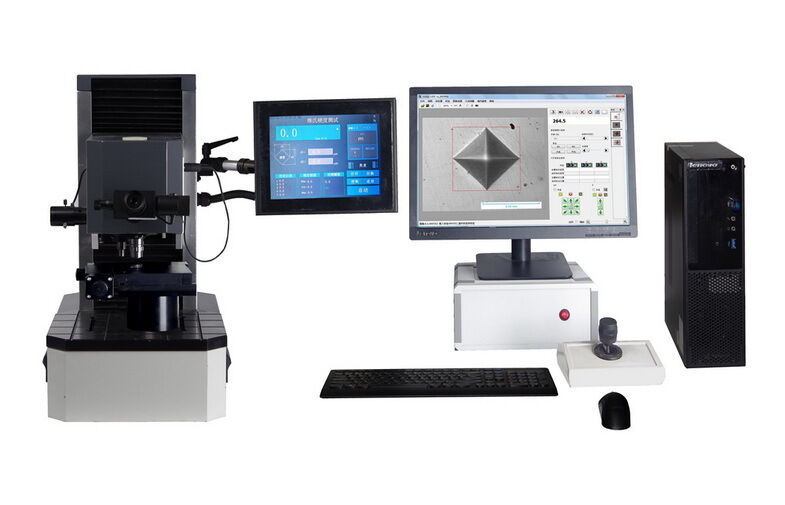

Indenter Lifting Structure Full Automatic Vickers Hardness Tester JMHVS-10XYZ
Download Technical Data: Vickers Hardness Tester JMHVS-10XYZ
Brief Introduction:
The iqualitrol JMHVS-5/10/30/50-XYZ Automatic Precision Vickers Hardness Tester equips with indenter lifting structure. It is especially suitable for the testing of large-sized workpieces. Moreover, it has good reliability, operability and intuition.
JMHVS-10XYZ adopts computer software programming, high-power optical measurement system and closed-loop control technology of sensors.
JMHVS-10XYZ equipped with indentation image automatic analysis system, which can not only photograph and measure the indentation and observe metallographic structure of materials, but also measure the depth of hardened layer of workpiece by planning path.
It is suitable for measuring Vickers hardness thin specimens, surface coating and other brittle materials such as glass, ceramics, agate, gemstone, etc.
Technical Specifications:
| Model | JMHVS-5XYZ | JMHVS-10XYZ | JMHVS-30XYZ | JMHVS-50XYZ | |
| Test force (kgf) | 0.2, 0.3, 0.5, 1, 2, 2.5, 3, 5 | 0.3, 0.5, 1, 2, 2.5, 3, 5, 10 | 0.5, 1, 2, 3, 5, 10, 20, 30 | 1, 2, 3, 5, 10, 20, 30, 50 | |
| Loading method | Automatic loading and unloading | ||||
| Turret | Automatic Turret | ||||
| Dwell Time | 5-60 seconds | ||||
| Indenters | HV and HK | ||||
| Objective | 10x, 20x | ||||
| Eyepiece | Digital 10x | ||||
| Resolution | 0.1um | ||||
| Vertical space | 215mm, Max height of specimen | ||||
| Depth throat | 160mm, Max depth of specimen | ||||
| Hardness conversion | Conform ASTM E 140 | ||||
| Touch screen | Force Curve, Options, Database, Control, Loading Start, Lighting Adjustment, Object Switching | ||||
| Value Display | D1, D2 value; HV, HK indication; hardness value; conversion value; test times; dwell time | ||||
| Light source | LED light | ||||
| COM port | RS232 | ||||
| Power supply | AC220V±5%, 50-60Hz | ||||
| Dimension and weight | 52*31*62cm, 86Kg | ||||
