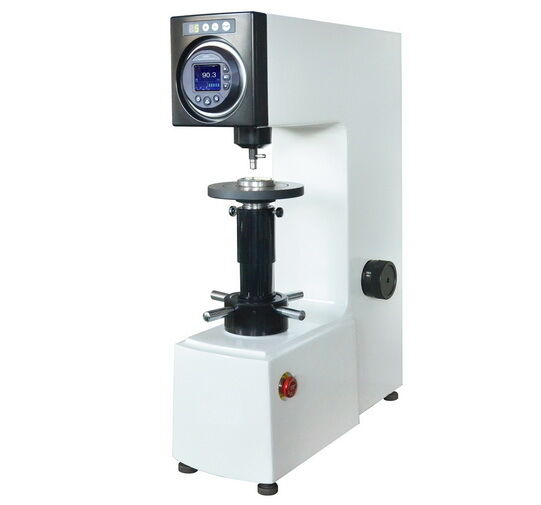

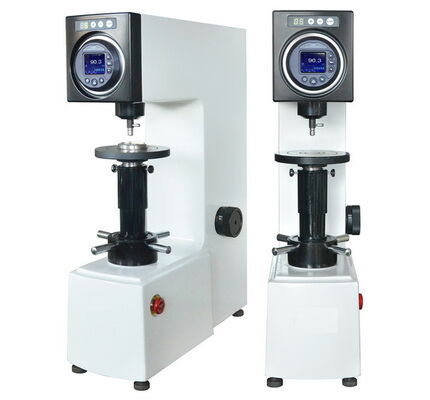

Motorized Loading Rockwell Hardness Tester SHR-150DTS with Digital Display
Brief Introduction:
The IQUALITROL SHR-150DTS electric Rockwell hardness tester uses a high-precision digital Rockwell LCD screen, which can display and set the current test scale, dwell time, hardness conversion values, and more.
The instrument uses a weight loading mechanism. During operation, you only need to manually preload until the instrument beeps, then press the start button.
The instrument will automatically load, dwell, unload, and display the hardness value, making operation convenient and the display intuitive.
Main Features:
1. The integrated cast iron structure makes the main body of the machine rigid, minimizing deformation. The casing undergoes natural aging treatment for more than six months, ensuring stable physical properties;
2. The lifting screw achieves a hardness of 35HRC~40HRC after heat treatment, with a stable structure and wear resistance;
3. The weights and lever are manufactured and calibrated using classic techniques, providing high accuracy and allowing fine adjustments through the mechanical structure;
4. High-precision digital Rockwell hardness calculator supports all Rockwell hardness scales and allows scale conversion according to ASTM E 140 standards;
5. Supports setting upper and lower limits, with out-of-tolerance warnings;
6. Hardness test results are saved in real time, automatically recording the test time, and data can be exported via USB or wirelessly.
Technical Specifications:
| Model | SHR-150DTS |
| Initial Test Force | 10kgf (98.07N) |
| Total Test Force | 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N) |
| Indenter | Diamond Rockwell Indenter, ф1.588mmBall Indenter |
| Loading Method | Automatic (Loading/Dwell/Unloading) |
| Hardness Reading | Automatically displays on LCD |
| Test scales | HRA, HRD, HRC, HRFW, HRBW, HRGW, HRHW, HREW, HRKW, HRL, HRM, HRP, HRR, HRS, HRV |
| Hardness conversion | ASTM E 140 |
| Data record | 500 measurements, and save test time |
| Data output | USB cable |
| auxiliary function | set upper and lower limits, with out-of-tolerance warnings |
| Resolution | 0.1HR |
| Dwell time | 2~60s |
| Max. Height of Specimen | 185mm |
| Depth throat | 165mm |
| Power supply | AC220V/50Hz/1Ph |
| Execute Standard | GB/T 230, ISO 6508, ASTM E18, JIS Z2245 |
| Dimension | 520*215*700mm |
| Weight | 78kg |
