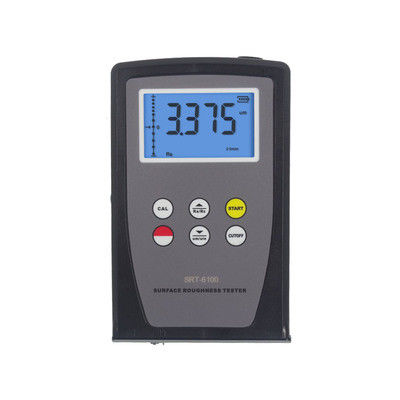

Surface Roughness Tester SRT-6100

China Surface Roughness Tester SRT-6100 supplier

Large Image :  Surface Roughness Tester SRT-6100

Product Details:

Place of Origin: DONGGUAN
Brand Name: iqualitrol
Certification: CE
Model Number: SRT-6100

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 10 work days
Payment Terms: T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Display: LCD Range: Ra:0.05~10.00m Rz:0.1~50.0m
Accuracy: <<15% Fluctuation Of Display Value: <<10%
Resolution: 0.001/0.01/0.1 Evaluation Length: 1~2L Optional
High Light:

non destructive testing instruments


fruit hardness tester


Spec:Widely used in production site to measure surface roughness of various machinery-processed parts.



* Be compatible with four standards of ISO, DIN, ANSI and JIS.

* Multiple parameter measurement: Ra, Rz.

* Highly sophisticated inductance sensor.

* Small in size, light in weight and easy to use.

* Manual or automatic shut down.

* Metric /Imperial Conversion.

* Use USB/RS-232 data output to connect with PC.

* Provide Bluetooth data output choice.



When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism inside the tester. The sensor gets the surface roughness by the sharp built-in probe. This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes and calculates and then outputs the measurement results on LCD.



Standards GB/T6062,ISO4287,DIN4768,JIS B,ANSI46.1
Display LCD
Parameters Ra,Rz
Range Ra:0.05~10.00m Rz:0.1~50.0m
Accuracy <<15%
Fluctuation of Display Value <<10%
Resolution 0.001/0.01/0.1
Sensor Radius of Probe Pin 10m
Material of Probe Pin Diamond
Measurement Force of Probe 16mN(1.6gf)
Probe Angle 90
Vertical Radius of Guiding Head 48 mm
Maximum Driving Stroke 12.5mm/0.5inch
Cutoff length(l) 0.25mm,0.8mm,2.5mm
Driving Speed Sampling When Length=0.25mm,Vt=0.135 mm/s
When Length=0.8mm,Vt=0.5mm/s
When Length=2.5mm,Vt=1mm/s
Returning Vt=1mm/s
Evaluation Length 1~2L Optional
Operating Conditions Temp:0~50℃ Humidity:<80%RH
Power Supply 4x1.5V AA(UM-3)Battery
Dimensions 128x80x30 mm
Weight 280g
Standard Accessories Main Unit
Standard Sample Plate SSP-100
Standard Sensor SRP-100
Small Screwdriver
Carrying Case ( B04 )
Operation Manual
Optinal Accessories RS-232C Cable with Software
Bluetooth Adapter with Software
