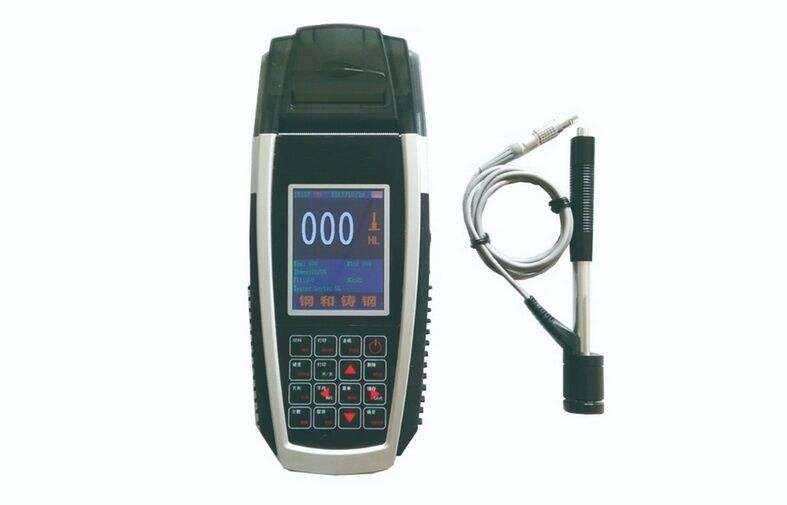

Portable Integrated Leeb Hardness Tester iLeeb-3000C with Built-in Printer
Brief Introduction:
The iqualitrol iLeeb-3000C features a 2.8-inch large LCD display, a built-in 1500mAh lithium-ion rechargeable battery, and a charging control circuit, with no memory effect, convenient charging, and long lifespan.
The device can store 12,000 measurement records, each including single measurement value, average value, measurement date, impact direction, count, material, and hardness scale.
It has a built-in thermal micro-printer to print measurement results at any time. With wireless Bluetooth communication, it can connect to a computer wirelessly, eliminating the hassle of previous wired operations.
It features indication software calibration. Using a digital impact device, it is compatible with all seven types of probes, with automatic probe type recognition, so no recalibration is needed when changing probes.
Hardness upper and lower limits can be preset, and it will automatically alarm when out of range, facilitating batch testing for users.
Technical Specifications:
| Model | iLeeb-3000C |
| Hardness Scale | HL,HRC ,HRB, HRA, HV,HB,HS |
| Measuring Range | (170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA(13 -100)HRB |
| Measuring Direction | 0~360° |
| Indicating Error | HLD:±5; HRC:±1; HB:±4 |
| Memory | Max 12000 test measurements |
| Printer | Built-in Printer |
| Statistics | Average value, min-max ,upper-lower limits |
| Data-Output | Blue tooth connection |
| Impact Device | D (standard) |
| Optional impact Devices | DC/D+15/DL/G/C/E |
| Work piece radius (convex/concave) | Rmin=50mm (with support ring Rmin=10mm) |
| Min. Workpiece weight | 2~5kg on stable support 0.05~2kg with compact coupling except C and G impact device |
| Workpiece min. thickness couple | 5mm,expect with impact device G:10mm,C:1mm |
| Workpiece min. case hardened depth | 0.08mm except C impact device 0.2mm and impact device 1.2mm |
| Dimension | 212×82×37mm |
| Power Supply | AA6V,500mm(A1.8AV),A2.5~4hours |
| Operating Temperature | 0 ℃ to 40 ℃ |
| Weight | 280g (Excluding impact device and printer) |
