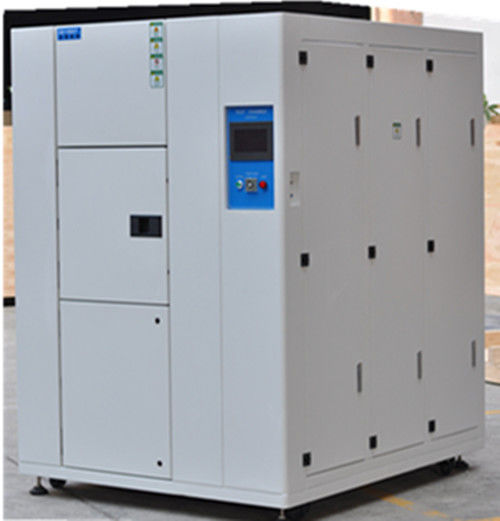

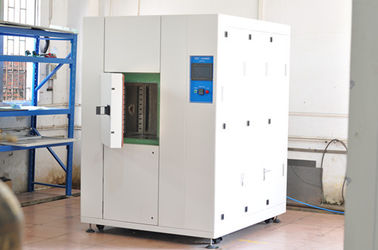

Programmable Cold Hot Temperature Cycling Chamber Thermal Shock Test Equipment

Programmable Cold Hot Temperature Cycling Chamber Thermal Shock Test Equipment

Brief Introduction:

Thermal Shock Test Chamber is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment, which is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm.

QTS3 series air-to-air thermal shock chambers circulate cold, hot, or ambient air as needed. The conditioned air is pre-cooled or pre-heated beyond the set point, allowing quicker recovery of the desired condition after transfer.

The equipment is widely used in metal, plastic, rubber, electronics and other materials and it can be used as an important reference for improving product quality. It meets the standard of MTL, IEC, JIS, GJB…

QTS3 Features:

1. Automatically setting of pro-cooled and pre-heated air.

2. Testing samples don’t move, cable port is available for power on testing.

3. Powerful interactive touch screen controller, easy operation and setting

4. High accurate temperature recovery with PID auto tuning

5. Auto defrost function

6. System alarms are stored in memory for historical review

7. Operation data can be downloaded as needed,with RS-232C communication port for connecting PC to control, record and save test report.

8. Cold and hot shock temperature recover within 5 minutes, which complies with MTL, IEC, JIS, GJB and other international standards.

Testing Standards:

MIL-STD-883E Method 1011.9 Thermal Shock

MIL-STD-202G Method 107G thermal Shock

JIS C 0025 Change of temperature

IEC 61300-2-47 Tests-Thermal Shocks

JESD22-A104C Temperature cycling

GB/T 2423.22-2012 Test N: Change of temperature

GB/T 2431.1-2001 Testing A: Low temperature testing method
GB/T 2431.2-2001 Testing B: High temperature testing method

GB 11158 High and low temperature test term

Model Selection:

Specifications:
