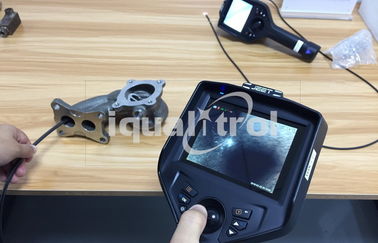

Lightweight Non Destructive Testing Equipment 0.3 Megapixel High - Resolution Borescope

China Lightweight Non Destructive Testing Equipment 0.3 Megapixel High - Resolution Borescope supplier
Lightweight Non Destructive Testing Equipment 0.3 Megapixel High - Resolution Borescope supplier Lightweight Non Destructive Testing Equipment 0.3 Megapixel High - Resolution Borescope supplier Lightweight Non Destructive Testing Equipment 0.3 Megapixel High - Resolution Borescope supplier Lightweight Non Destructive Testing Equipment 0.3 Megapixel High - Resolution Borescope supplier

Large Image :  Lightweight Non Destructive Testing Equipment 0.3 Megapixel High - Resolution Borescope

Product Details:

Place of Origin: DONGGUAN
Brand Name: iqualitrol
Certification: CE
Model Number: i35-2810F

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 100 sets per month
Detailed Product Description
Insert Tube: Length 1M Camera: 0.3Mega Pixel
IR Function: IR/IR Thermal Imaging(optional) Monitor: 3.5" HD Monitor
Probe: Diameter 2.8mm Waterproof: Camera/Object Glass/Tubes:IP67
High Light:

non destructive testing machine

,

fruit hardness tester


Front View 2.8mm Camera 0.3Megapixel Industrial Borescope for Non-destructive Visual Inspection

Model: i35-2810F


Brief Introduction:

iqualitrol Videoscope systems with exceptional functionality, simple operation, and proven durability. Industrial borescopes feature a high-resolution image sensor positioned at the objective end, and matched to our precision lenses to deliver bright, colour-rich images. Advanced LED or laser diode illuminations provide optimum brightness to the inspection area.



The compact and lightweight videoscopes achieve high quality inspections at any site, featuring versatile functionality and proven reliability under demanding circumstances.

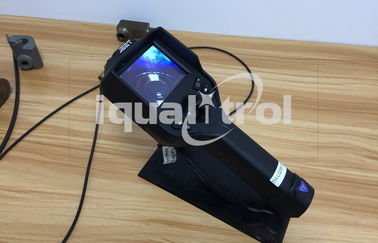

   Lightweight Non Destructive Testing Equipment 0.3 Megapixel High - Resolution Borescope



Videoscope Technology:

CCD cameras are typically used for image reproduction and found on more expensive videoscopes due to their superior color and brightness of areas being inspected.



CMOS cameras are becoming more common due to their lower cost and excellent image quality. CMOS based videoscopes do not offer the color and brilliant image reproduction found on more expensive CCD videoscopes.



Tip articulation is achieved by manipulating up/down and right/left mechanical controls or an electronically controlled joystick. Mechanical articulation offers greater precision of movement and is less costly.



Interchangeable tip optics allows a selection of forward and side viewing tips with different fields of view and depths of field to be chosen depending on the application. Additional tips add to the overall cost of an industrial videoscope and can cause interruptions during inspections to change tips.



Remote focus allows a videoscope to be remotely focused for optimal resolution without the need to change tip adapters. A videoscope with remote focus does not require multiple tip optics and provides a superior image at a lower cost.


Application:
Industrial videoscopes are used to remotely inspect plant and equipment for condition, quality control check are made with videoscopes on precision parts and castings and law enforcement uses videoscopes for detection of hidden contraband and explosive ordinance disposal.

Common inspections include:
Gas turbines
Steam turbines
Boiler tubes
Heat exchanger tubes
Rotating equipment
Foreign object retrieval
Aircraft
Gearboxes

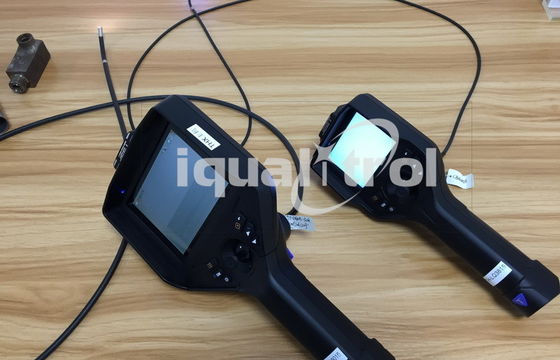

   Lightweight Non Destructive Testing Equipment 0.3 Megapixel High - Resolution Borescope

Quality Assurance:
All products are complied with RoHS, CE and ISO standard and passed testing for temperature, waterproof, drop, vibration and pressure. Our vision is providing high-quality professional inspection instrument to every customer.

Operation Environment:

Host System Working Temperature -20°C~50°C, when 0°C below, the display needs preheating.
Camera Working Temperature -20°C~80°C, when 0°C below, please reduce oriented operation.
Store Temperature -23°C~63°C
Relative Humidity Maximum: 92%, non-condensing


Technical Specifications:

Camera Diameter(mm) Φ3.9mm
Camera Material Titanium alloy
Camera Pixel 0.45 Mega Pixel
Depth of Field 20mm~150mm/ 10-100mm
Angle of Field 120°
Illumination 30,000lx at a maximum
Bright/Chroma/Contrast Ratio Adjustment Manual, bright: six levels, chroma and contrast ratio: manual adjusting
Articulation 360° all-way articulation
Bending Angle ≥180°
Effective Working Length 2m
Insert Tube tungsten-braided
Protecting Device of
Durability
Buffer protection device between the host and wear-resistant tube
Display Highlight 3.5 inches TFT LCD, can be replaceable for 5.7 inches display
Display Resolution 640*480
Image Resolution 640*480/1280*720/1920*1080
Video Resolution 640*480/1280*720/1920*1080
Image/Video Format JPEG/MOV
WIFI Function WIFI(optional)
IR Function IR/IR thermal imaging(optional)
Memory Standard TF card:8G, Maximum: 32G
Language Chinese, English, Russian… 8 languages
Data I/O port Micro-USB port,HDMI port
Waterproof Camera/Object glass/Tubes:IP67
Working Time ≥8 hours
Weight ≤0.55kg(with batteries)
Power Supply Rechargeable lithium battery(or built-in battery)
Battery Capacity 3.7V 3200mAh
Power Consumption 2W
Charging Parameters DC5V, Maximum current:1A
