IR Function: | IR/IR Thermal Imaging(optional) | Monitor: | 3.5" HD Monitor |
---|---|---|---|
Probe: | Diameter 2.8mm | Waterproof: | Camera/Object Glass/Tubes:IP67 |
Power: | Consumption 2W | Working Time: | ≥8 Hours |
Highlight: | non destructive testing machine,non destructive testing instruments |

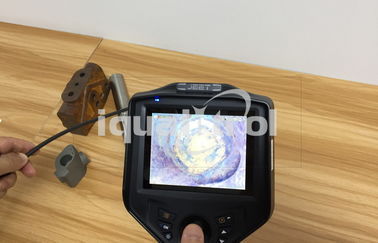

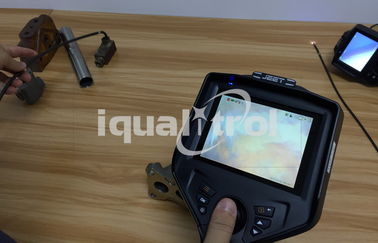

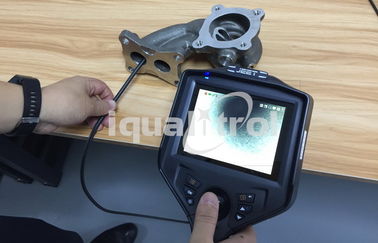

Front View Camera Industrial Borescope with Tube Diameter 2.8mm for Inspection Inaccessible Area
Brief Introduction:
iqualitrol remote visual inspection videoscopes systems are designed to meet the demands of the modern industrial inspection environment. They offer portable and intelligent remote imaging solutions with a host of advanced, yet intuitive features, making them ideal remote visual inspection instruments.
A wider range of videoscope, fiberscopes and borescopes with various diameters and viewing options are available, making our videoscopes systems the most versatile inspection system suitable for a multitude of inspection requirements.
Video Borescope Zoom:
Zooming on your video borescope involves getting a closer view of distant surfaces. Optical zoom uses an actual lens adjustment and digital zoom adjusts the digital image itself.
Optical zoom: An optical zoom is a true zoom lens, like the zoom lens you’d use on a photographer’s camera. There are no video borescopes manufactured with true optical zoom at this point in time.
Digital zoom: Some video borescopes offer a digital zoom, which is simply image processing. When you use a digital zoom, the borescope camera enlarges the image area at the center of the frame and trims away the outside edges of the picture.
The result is the same as when you open an image in your photo-editing program, crop away the edges of the picture, and then enlarge the remaining portion of the photo. Enlarging the “zoomed” area also enlarges the pixels and reduces the image resolution and the image quality.
Application:
iqualitrol videoscopes are widely used in the fields of automotive manufacturing, car aftermarket, police security checking, aviation and aerospace area, special inspection institute, pharmaceutical machinery, non-destructive testing explosion-proof detection, ect.
Aerospace, airframe examinations, inspection of turbine blades and combustion chambers,
And research, development and production of rocket engines.
Power Generation, Maintenance of heat exchanger pipes, condensers, piping and turbines in nuclear and thermal power Generation plants, and gearboxes of wind power generation facilities.
Oil/gas/chemical plants, Routine and urgent inspection of process piping, pressured storage reservoirs, heat exchangers, boilers, etc.
Quality Assurance:
All products are complied with RoHS, CE and ISO standard and passed testing for temperature, waterproof, drop, vibration and pressure. Our vision is providing high-quality professional inspection instrument to every customer.
Operation Environment:
Host System Working Temperature | -20°C~50°C, when 0°C below, the display needs preheating. |
Camera Working Temperature | -20°C~80°C, when 0°C below, please reduce oriented operation. |
Store Temperature | -23°C~63°C |
Relative Humidity | Maximum: 92%, non-condensing |
Technical Specifications:
Camera Diameter(mm) | Φ2.8mm |
Camera Material | Titanium alloy |
Camera Pixel | 0.3 Mega Pixel |
Depth of Field | 20mm~150mm/ 10-100mm |
Angle of Field | 120° |
Illumination | 30,000lx at a maximum |
Bright/Chroma/Contrast Ratio Adjustment | Manual, bright: six levels, chroma and contrast ratio: manual adjusting |
Articulation | 360° all-way articulation |
Bending Angle | ≥180° |
Effective Working Length | 2m |
Insert Tube | tungsten-braided |
Protecting Device of Durability |
Buffer protection device between the host and wear-resistant tube |
Display | Highlight 3.5 inches TFT LCD, can be replaceable for 5.7 inches display |
Display Resolution | 640*480 |
Image Resolution | 640*480/1280*720/1920*1080 |
Video Resolution | 640*480/1280*720/1920*1080 |
Image/Video Format | JPEG/MOV |
WIFI Function | WIFI(optional) |
IR Function | IR/IR thermal imaging(optional) |
Memory | Standard TF card:8G, Maximum: 32G |
Language | Chinese, English, Russian… 8 languages |
Data I/O port | Micro-USB port,HDMI port |
Waterproof | Camera/Object glass/Tubes:IP67 |
Working Time | ≥8 hours |
Weight | ≤0.55kg(with batteries) |
Power Supply | Rechargeable lithium battery(or built-in battery) |
Battery Capacity | 3.7V 3200mAh |
Power Consumption | 2W |
Charging Parameters | DC5V, Maximum current:1A |
