Product Details:
Payment & Shipping Terms:
|
| Monitor: | 5.7" HD LCD Monitor | Waterproof: | Camera/Object Glass/Tubes:IP67 |
|---|---|---|---|
| Bending: | Angle ≥180° | Camera: | Megapixel Camera |
| Data I/O Port: | Micro-USB Port,HDMI Port | Articulation: | 360° All-way Articulation |
| High Light: | non destructive testing machine,fruit hardness tester |
||

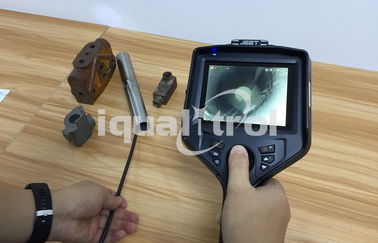

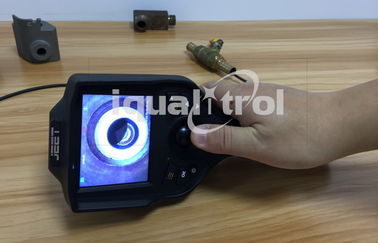

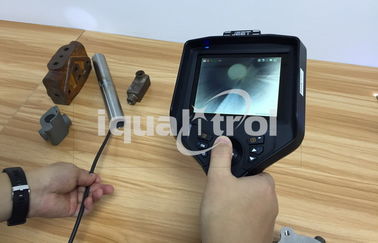

5.7" LCD Megapixel Camera Industrial Videoscope for Visual Inspection of Automotive Assembles
Model: i57-6015HF
What is Borescope?
iqualitrol Videoscope systems with exceptional functionality, simple operation, and proven durability. Industrial borescopes feature a high-resolution image sensor positioned at the objective end, and matched to our precision lenses to deliver bright, colour-rich images. Advanced LED or laser diode illuminations provide optimum brightness to the inspection area.
A borescope is an optical device which can be used for visual inspection of inaccessible work areas. This device consists of a rigid or flexible tube, with an eyepiece on end. It is also surrounded by the optical fibres, which helps the user to illuminate the remote object inaccessible by other means. The objective lens and the eyepiece help to magnify the internal image by illuminating.
Video Borescope Zoom
Zooming on your video borescope involves getting a closer view of distant surfaces. Optical zoom uses an actual lens adjustment and digital zoom adjusts the digital image itself.
Optical zoom: An optical zoom is a true zoom lens, like the zoom lens you’d use on a photographer’s camera. There are no video borescopes manufactured with true optical zoom at this point in time.
Digital zoom: Some video borescopes offer a digital zoom, which is simply image processing. When you use a digital zoom, the borescope camera enlarges the image area at the center of the frame and trims away the outside edges of the picture.
Application:
Industrial videoscopes are used to remotely inspect plant and equipment for condition, quality control check are made with videoscopes on precision parts and castings and law enforcement uses videoscopes for detection of hidden contraband and explosive ordinance disposal.
iqualitrol videoscopes are widely used in the fields of automotive manufacturing, car aftermarket, police security checking, aviation and aerospace area, special inspection institute, pharmaceutical machinery, non-destructive testing explosion-proof detection, ect.
Common inspections include:
Gas turbines
Steam turbines
Boiler tubes
Heat exchanger tubes
Rotating equipment
Foreign object retrieval
Aircraft
Gearboxes
Quality Assurance:
All products are complied with RoHS, CE and ISO standard and passed testing for temperature, waterproof, drop, vibration and pressure. Our vision is providing high-quality professional inspection instrument to every customer.
Operation Environment:
| Host System Working Temperature | -20°C~50°C, when 0°C below, the display needs preheating. |
| Camera Working Temperature | -20°C~80°C, when 0°C below, please reduce oriented operation. |
| Store Temperature | -23°C~63°C |
| Relative Humidity | Maximum: 92%, non-condensing |
Technical Specifications:
| Camera Diameter(mm) | Φ6mm |
| Camera Material | Titanium alloy |
| Camera Pixel | Mega Pixel |
| Depth of Field | 20mm～150mm/ 10-100mm |
| Angle of Field | 120° |
| Illumination | 30,000lx at a maximum |
| Bright/Chroma/Contrast Ratio Adjustment | Manual, bright: six levels, chroma and contrast ratio: manual adjusting |
| Articulation | 360° all-way articulation |
| Bending Angle | ≥180° |
| Effective Working Length | 2m |
| Insert Tube | tungsten-braided |
| Protecting Device of Durability |
Buffer protection device between the host and wear-resistant tube |
| Display | 5.7 inches display |
| Display Resolution | 640*480 |
| Image Resolution | 640*480/1280*720/1920*1080 |
| Video Resolution | 640*480/1280*720/1920*1080 |
| Image/Video Format | JPEG/MOV |
| WIFI Function | WIFI(optional) |
| IR Function | IR/IR thermal imaging(optional) |
| Memory | Standard TF card:8G, Maximum: 32G |
| Language | Chinese, English, Russian… 8 languages |
| Data I/O port | Micro-USB port,HDMI port |
| Waterproof | Camera/Object glass/Tubes:IP67 |
| Working Time | ≥8 hours |
| Weight | ≤0.55kg(with batteries) |
| Power Supply | Rechargeable lithium battery(or built-in battery) |
| Battery Capacity | 3.7V 3200mAh |
| Power Consumption | 2W |
| Charging Parameters | DC5V, Maximum current:1A |
