Product Details:
Payment & Shipping Terms:
|
| IKYS-80AS: | Internal 800×600×430mm | IKYS-100AS: | Internal 1000×600×430mm |
|---|---|---|---|
| IKYS-120AS: | Internal 1200×840×630mm | Temp Range: | ±5~150℃ |
| Application: | Mushrooms, Seafood, Sausage,tea, Tobacco, Nuts, Jujube And Bacon | Feature: | Energy-saving, Environmental Protection, Low Maintenance Costs |

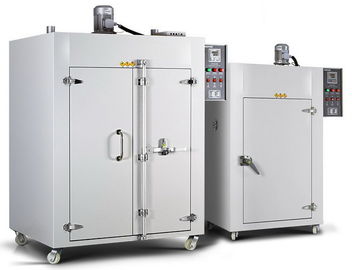

Energy Saving Agricultural Products Dehydration Drying Oven
with Intelligent PID Control
Principle:
Through the heat generated by the heating elements, evaporate the moisture in the material to achieve the purpose of dehydration.
Technical Specifications:
| model No. | Internal size(mm) | External size(mm) | voltage (V) |
power (KW) |
tempe-rature (℃) |
packing size(mm) | Accu-racy | fluctu-ation | shelves |
| iKYS-80AS |
800×600 ×430 |
1200×735 ×600 |
220 | 2.4 | ±5~150 |
1370×830 ×760 |
±0.5℃ | ±2% | 8 |
| iKYS-100AS |
1000×600 ×430 |
1790×1100 ×650 |
220 | 3.6 | ±5~150 |
1950×1220 ×770 |
±0.5℃ | ±2% | 10 |
| iKYS-120AS |
1200×840 ×630 |
1910×1330 ×820 |
380 | 7.2 | ±5~150 |
2050×1450 ×940 |
±0.5℃ | ±2% | 20 |
Process:
The top of the chamber is equipped with an electric heat element and an air fan; when they are working, it is heated by an electric heat element and air circulation through the fan blower to achieve drying effect; the temperature PID control can ensure temperature uniformity.
Scope of application:
Specially designed for agricultural products such as grain and miscellaneous grains.
It is very suitable for dehydration of various agricultural and sideline products such as baked fruits, pepper, dried shoots, Chinese medicinal materials, mushrooms, seafood, sausage and bacon, tea, tobacco, nuts, jujube, longan, peanuts, melon seeds, raisins, betel-lang, chrysanthemum, corn and so on.
Advantages of food dryers:
Easy to install and move, small occupied area, suitable for household and commercial use.
Energy-saving, environmental protection, less power consumption, can be used for a long time, long service life, low maintenance costs.
It is a safe and reliable semi-closed drying system.
Advantages:
1. Reasonable hot air circulation structure, large centrifugal wind turbe to make heat flow uniform,large storage and fast heating.
2.Using aluminum silicate fiber, the thermal insulation performance is significantly improved, thus reducing the power consumption.
3. Intelligent PID control can more accurately control and reflect the temperature, with timer and overtemperature alarm function.
4. Stainless steel inner and shelves, acid and alkali proof, corrosion resistance, door seal with high temperature silica gel, durable and ensure food hygiene and safety during operation, easy to clean.
Notes: It can not be used as kitchen oven, can not be directly used in food production, can not bake inflammable and explosive goods.
