Product Details:
Payment & Shipping Terms:
|
IPX-40: | Internal 350×350×350mm, 40L | IPX-70: | Internal 450×450×350mm, 70L |
---|---|---|---|
IPX-130: | Internal 550×550×450mm, 130L | Temp Range: | RT+3℃~65℃ |
Control: | Microprocessor PID | Interior: | SUS304 Stainless Steel |

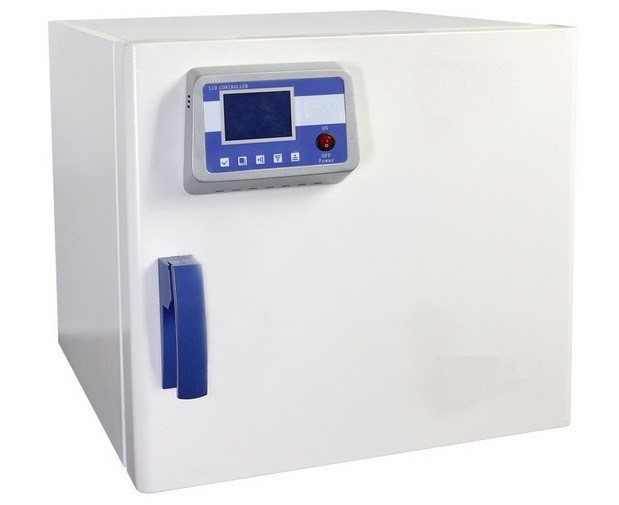

Constant Temperature Medical Thermostatic Incubator with Perfect Air Current Cycling
Thermostatic incubator:
Cavity preheating, constant temperature, heat insulation.
Suitable for the cultivation of microorganism's industry, is the necessary equipment in medical health, biology, agriculture and scientific research.
The original imported industrial grade PT100 temperature sensor, fast response time when class change in temperature, small natural temperature effect.
Technical parameters:
product model | Thermostatic incubator | ||
iPX-40 | iPX-70 | iPX-130 | |
Convection Mode | Forced Convection | ||
Control System | Microprocessor PID | ||
Temp. Range (℃) | RT+3℃~65℃ | ||
Temp. Accuracy(℃) | 0.1 | ||
Temp. Fluctuation(℃) | ±0.5 (in the of range 50~240℃) | ||
Temp. Uniformity | 2% (in the of range 50~240℃) | ||
Timer Range | 0~99h,or 0~9999min,can be choose | ||
Working environment | Ambient temperature:10~30℃, Humidity<70% | ||
Insulation materials | Imported environmental protection type material | ||
External Dimensions(mm) (H×W×T) | 570×580×593 | 670×680×593 | 770×780×693 |
Internal Dimensions(mm) (H×W×T) | 350×350×350 | 450×450×350 | 550×550×450 |
Interior Volume (L) | 40 | 70 | 130 |
Interior steel materials | SUS304 stainless steel inner | ||
The number of standard tray | 2 | ||
Power (W) | 420 | 520 | 670 |
Supply voltage | 220V/50Hz | ||
Net weight(KG) | 40 | 48 | 65 |
Shipping weight(KG) | 43 | 51 | 69 |
Packing size(mm) (H×W×T) | 690×660×680 | 790×760×680 | 890×860×780 |
Product introduction:
● ALLHEAT™ the advanced cavity preheating technology is the heating elements evenly distributed around the inner chamber, pro-heating of the cavity inner wall and then through the heat transfer and forced-fan convection, so the cavity temperature of every point can accurately achieve and maintain setting value, thus ensuring uniform distribution of cavity temperature;
● With ALLHEAT™ series products because uniform distribution of heat, so low energy consumption, heat not easily lost and enables customers to use cost reduction.
ALLFLOW™ Perfect Air Current Cycling:
● ALLFLOW™ air current cycling: perfect forced convection, minimum temperature recovery time after opening. reasonable air inlet and outlet duct design, equip with international famous finned motor (no maintenance and high durability), ensure an ideal result of samples culture.
● ALLFLOW™ air current cycling: keep temperature continuous and stable. The wind speed can be adjusted with fan switch function, ensure perfect sample culture environment.
ALLSENS™ Programmable PID Control:
●Integrated, dot-matrix LCD display, Chinese and English subtitles and all the parameters can be clear at a glance.
●User-friendly design, display parameters: temperature, air velocity, run time, run/stop.
●Adaptive PID controller precisely control the temperature, prevent temperature soaring, keep working room temperature stable and uniform.
●User password control, built-in multifunctional memory menu, connect to multiple devices (up to 16 units), real-time monitoring.
●To meet customer needs, Time setting:0-99h, 0-9999min.
●All set operations are recognized voice prompts, easy to operate.
●Can use the remote control of computer software, professional supporting the operation ALLSENSTM programmable software (optional).
Pro-Insulation™ Insulation Technology:
●Based on the effective use of heat as a concept, use complete isolation design between the liner and shell to avoid energy loss due to heat transfer.
●Adopt Imports of high-density thermal insulation material wrapped liner, effective heating insulation and still stand.
●Good silicone door seal, isolation type hinge design, equip with buckle door handles, ensure excellent salability.
Excellent Imported Temperature Sensor:
●Imported industrial sensor PT100, short response time, low self-heating temperature.
Ergonomic Design:
●Laboratory of classical color design, international fashion design, arc-shaped design, for highest operational comfort.
●Integrated design that contains original outside handle and LCD screen, ergonomic structure, comfortable viewing angle, convenient to open the outside door and operate interface.
●Interval and number of mesh shelf can be adjusted according to customer requirements. Maximum capacity to meet customer needs.
●Comfortable vertical structure, maximize work chamber, working room in the upper, convenient to take.
●Double door design, easy observation samples, keep temperature stability, with bell-type lighting system.
Modern Manufacturing Processes
Technical parameters:
●Sheet metal parts use laser cutting and CNC bending technology. Cold-rolled sheets use three line of acidification anti-rust technology. Incubator surface use workmanship of spraying plastics.
Easy To Clean:
●Internal surface is smooth and less weld, easy cleaning and maintenance.
●Pull multilayer shelf design, less metal accessories, easy to clean.
Convenient Maintenance:
●Liquid crystal micro-computer controller with diagnostic function. Display operating parameters including historical record, temperature and humidity data.
●Electrical control components and working room are installed separately. installed behind incubator, easy to maintenance.
Secure and Efficient Protection Concept:
●Multiple over temperature protection function, sound and light alarm.
●Automatic double over temperature protection function.
●All electronic components are UL certified.
●All over temperature protection devices meet Germany standard DIN standard D12880 Class 3.1.
