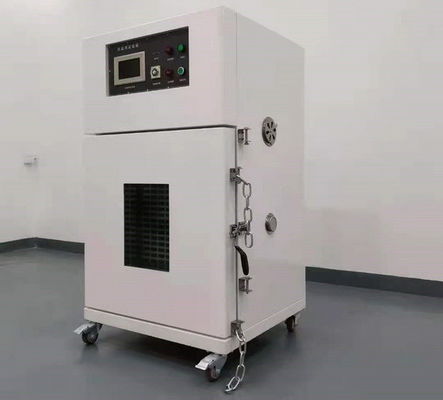

Explosion Proof Thermal Abuse Test Chamber with pressure relief device

Explosion Proof Thermal Abuse Test Chamber with pressure relief device

Model: iJD-6009C

Use of equipment:

iqualitrol iJD-6009C is one of the common kinds of baking and aging equipment, suitable for electronic instruments, materials, electricians, vehicles, metals, electronic products, all kinds of electronic components in the temperature environment, inspection of its performance indicators and quality management and so on.

Product features:

◆ Use iqualitrol touch screen controller, high-end atmosphere, powerful, single point temperature control or program temperature control mode;

◆ Affordable price, save the user budget;

◆ Casters are installed at the bottom and can be moved according to the position;

◆ PT-100 type thermal resistance temperature sensor, high accuracy, fast induction temperature, high temperature resistance, low maintenance;

◆ Users can meet the special requirements of the laboratory according to the type of internal and external chamber wall processing;

◆ The outer box is made of cold rolled steel plate, spraying paint, corrosion and high temperature resistance and perfect structure;

◆ The inner box is made of 304 # mirror plate, with smooth surface, corrosion resistance and high temperature resistance, easy to clean and easier to maintain;

Test Standard:

GB 31241-20147.8 Thermal abuse test Standard in the Safety Requirements for Lithium-ion Battery and Battery Pack for Portable Electronics

Chamber structure dimensions:

1. Internal size: 500 (wide) 500 (deep) 500 (height) mm;

2, the external size: about 770 (wide) 720 (deep) 1270 (high) mm, with the physical object as the standard;

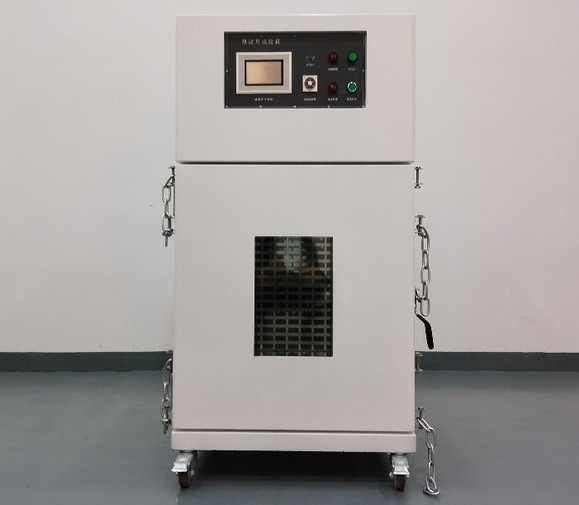

3. Control panel: the control panel is installed above the console (as shown in the figure);

4. Open the door: open the single door from right to left;

5. Windows: with Windows on the door, specification W300 * H400mm;

6, the inner material is: 304 # stainless steel mirror plate, thickness 1.2mm;

7, the external material is: cold-rolled steel plate, thickness 1.5 mm. Powder paint treatment (wrinkles gray);

8, partition: the inner two adjustable, bottom 100mm first layer, above split, distribution board two;

9, the insulation material is: high temperature resistant rock wool, good insulation effect;

10, the sealing material is: high temperature resistant foam silicone strip;

11. Test hole: one test hole is opened on the right side of the machine, with the pore diameter of 50mm;

12, the machine is installed movable casters and adjustable fixed cup for convenient movement and fixed position.

temperature controlling system:

1. Temperature controller is touch screen, fixed value or program operation control temperature can be selected, automatically calculated, PV / SV display at the same time, touch setting (as shown in the figure)

2, timing function: built-in timing function, temperature to time, time to stop heating, at the same time alarm prompt;

3. Data port: the RS232 interface of the computer connection port;

4. Curve: the running temperature curve can be viewed on the touch screen table;

5, temperature sensor: PT 100 high temperature type;

6. Control output signal: 3-32V;

7, the heating controller is: solid state relay S S R no contact;

8, the heat heating material is: high temperature resistant adding device;

9, temperature range: normal temperature + 20~200℃ temperature is adjustable;

10, heating rate: 5℃±2.0/min Use the program time to control the heating rate;

11. Control accuracy: ± 0.5℃;

12. Display accuracy: 0.1℃;

13. Test temperature: 130℃± 2.0℃; (no-load test)

14. Temperature deviation: ± 2.0℃ (130℃ / 150℃).(No-load test)

supply air system:

1. Air supply mode: internal hot air circulation, air on the left of the inner box, right air;

2, the motor is the long shaft high temperature resistant special type, 370W / 220V;

3, the fan is multi-wing turbine type 9 inch;

4. One air inlet on the right side and one exhaust outlet on the left side.

supply unit:

1, Voltage AC 220V / 50Hz single phase

2, the current is 20A

3. Total power is 4.5KW

Temperature circuit protection system:

1. Overtemperature protection system: when the temperature is out of control, when the set temperature of the overtemperature protector is exceeded, automatically stop the heating and power supply, so as to protect the safety of products and machines;

2, circuit protection: grounding protection, fast insurance, overload protection, open circuit switch, etc.

Safety device protection system:

1, pressure relief device: the inner box is open after an explosion-proof pressure relief port, when the battery explosion when the shock wave, effectively protect the safety of the machine, specification W300 * H300mm;

2. Protective device on the door: the explosion-proof chain is installed at the four corners on the door to prevent the explosion from falling off and damaging the property and personnel safety.
