Product Details:
Payment & Shipping Terms:
|
| Test Data: | Built-in Printer, And Can Output Data Through RS232 Port | Loading Control: | Automatic Operation Of Automatic Loading, Dwell And Unloading |
|---|---|---|---|
| Fuselage: | High-quality Cast Iron For One-time Casting | Display: | Touch Screen And High-speed ARM Processor |
| Test Force: | 60, 100, 150kgf, 15, 30, 45kgf | Hardness Scales: | Rockwell And Superficial Rockwell Hardness |

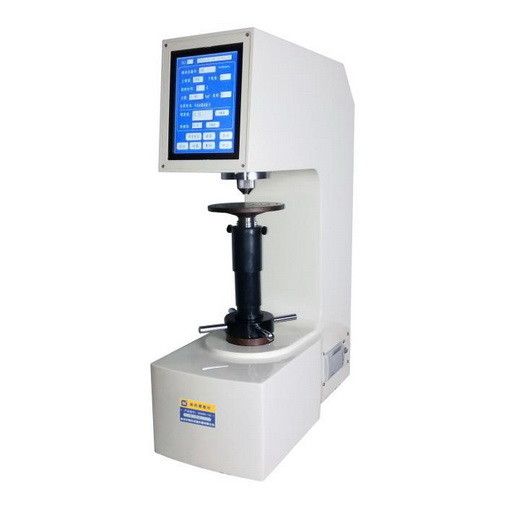

Touch Screen Digital Full Scales Rockwell Hardness Tester with RS232 Port
Model: HRSS-150
product description:
iqualitrol HRSS-150 digital display full Rockwell and Superficial Rockwell hardness tester is a multifunctional hardness tester integrating Rockwell, superficial Rockwell and plastic Rockwell scales.
Iqualitrol HRSS-150 adopts 8-inch touch screen and high-speed ARM processor. It has intuitive display, friendly human-computer interaction and easy operation;
The fuselage is made of high-quality cast iron for one-time casting, combined with the car paint treatment process, the shape is round and beautiful;
The measuring device adopts a grating displacement sensor, and the result is displayed on the LCD screen, and the test scale, test force, indenter type, dwell time, conversion unit, etc. can be displayed and set;
The electronic closed-loop control applies the test force, which fully realizes the automatic operation of automatic loading, dwell and unloading of the test force;
The built-in testing software can correct the hardness value of the machine;
Convenient control system, which can automatically convert the unit of the full hardness scale;
Built-in printer, and can output data through RS232 port;
The accuracy complies with GB/T230.2-2018, ISO6508-2 and American ASTM E18 standards.
Technical Specifications:
| Model | HRSS-150 |
| Range of Measurement |
20-95HRA,10-100HRBW,20-70HRC； 70-94HR15N,67-93HR15TW； 42-86HR30N,29-82HR30TW； 20-77HR45N,10-72HR45TW； |
| Test Force |
588.4, 980.7, 1471N(60, 100, 150kgf)； 147.1, 294.2, 441.3N(15, 30, 45kgf) |
| Maximum Height of Specimen | 210mm |
| Distance between Indenter Center and Wall | 165mm |
| Hardness Resolution | 0.1HR |
|
Power Supply |
AC220V/50Hz |
| Dimension | 510*290*730mm |
| Weight | 95kg |
