Product Details:
Payment & Shipping Terms:
|
Group Test: | Each Sample Can Be Set The Range Of 1 To 10 Points | Curve Display: | Can Directly Display The Change Of Hardness Value |
---|---|---|---|
Database Function: | Test Data Can Be Automatically Grouped And Saved | Correction Function: | Hardness Value Can Be Directly Corrected Within A Certain Range |
Data Compensation: | Automatic Correction Of Cylindrical Surface And Spherical Surface | Hardness Range Set: | Test Value Exceeds The Set Range, An Alarm Will Sound |

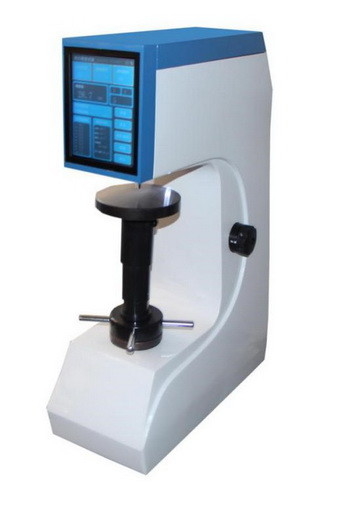

Touch Screen Digital Rockwell Hardness Tester with Data Statistics Wireless Printer
Model: HRS-150T
product description:
● iqualitrol HRS-150T adopts 8-inch touch screen and high-speed ARM processor, intuitive display, friendly human-computer interaction, easy operation; fast calculation speed, large amount of database storage, automatic data correction, and provide data polyline report;
● The fuselage part is made of high-quality cast iron for one-time casting, combined with the car paint treatment process, the shape is round and beautiful;
● With temperature measurement function, digital temperature measurement circuit, long-term work, stable and reliable;
● It has the function of automatic correction of cylindrical surface and spherical surface, and there are corresponding prompts;
● The maximum and minimum values of the hardness value can be set, and when the test value exceeds the set range, an alarm will sound;
● With software hardness value correction function, the hardness value can be directly corrected within a certain range;
● With database function, the test data can be automatically grouped and saved, each group can save 10 data, and can save more than 2000 data;
● It has the function of hardness value curve display, which can directly display the change of hardness value;
● The database can automatically record the scale, test force, hardness value, temperature and other parameters;
● The number of test points for each group can be set freely within the range of 1 to 10 points;
●The system automatically calculates the maximum value, minimum value, average value and standard deviation for each group of hardness values;
● Convenient control system, which can automatically convert the unit of the full hardness scale;
● Configure a wireless bluetooth printer, and output data through RS232 and USB interface ports;
● It has an independent small lighting, which is convenient for users to operate when the light is poor;
● The accuracy complies with GB/T230.2-2018, ISO6508-2 and American ASTM E18 standards.
Main Parameters:
Model | HRS-150T |
Range of Measurement | 20-95HRA,10-100HRBW,20-70HRC; |
Test Force |
588.4, 980.7, 1471N (60, 100, 150kgf) |
Maximum Height of Specimen | 200mm |
Distance between Indenter Center and Wall | 160mm |
Hardness Resolution | 0.1HR |
Power Supply | AC 220V,50Hz |
Dimension | 510*290*730mm |
Weight | 80kg |
