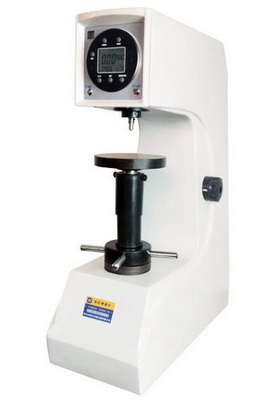

Motorized Loading Digital Display Rockwell Hardness Tester Resolution 0.1HR Throat Depth 160mm

China Motorized Loading Digital Display Rockwell Hardness Tester Resolution 0.1HR Throat Depth 160mm supplier

Large Image :  Motorized Loading Digital Display Rockwell Hardness Tester Resolution 0.1HR Throat Depth 160mm

Product Details:

Place of Origin: Dongguan/China
Brand Name: q1-test
Certification: CE, ISO
Model Number: 2HRD-150S

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 100 Sets per Month
Detailed Product Description
Vertical Space: Maximum Height Of Specimen 200mm Throat Depth: Throat Depth 160mm
Display: Digital Display Meter Reads Directly Hardness: Resolution 0.1HR
Loading: Automatic (Loading/Dwell/Unloading) Test Standard: ASTM E18 Standard



Motorized Loading Digital Display Rockwell Hardness Tester Resolution 0.1HR Depth 160mm



Model: 2HRD-150S



product description:

iqualitrol 2HRD-150S digital display Rockwell hardness tester displays the hardness value digitally, and can set the dwell time and hardness conversion;



The fuselage is made of high-quality cast iron for one-time casting, combined with the car paint treatment process, the shape is round and beautiful;



The digital display meter reads directly, and can be automatically converted into Brinell hardness and Vickers hardness;

Apply precision hydraulic buffer, no buffer fluid leaks, and the loading and unloading is stable, without impact, and the speed is adjustable;



The motor is used to control the loading, dwell and unloading of the test force, eliminating the manual operation and reading errors of the manual Rockwell hardness tester;



The accuracy complies with GB/T230.2-2018, ISO6508-2 and American ASTM E18 standards.



Main Parameters:

Model 2HRD-150S
Range of Measurement 20-95HRA,10-100HRBW,20-70HRC
Test Force 588.4,980.7,1471N(60,100,150kgf)
Specimen Height Maximum Height of Specimen 200mm
Throat Distance between Indenter Center and inner Wall 160mm
Hardness Resolution 0.1HR
Loading Mode Motorized
Power Supply AC 220V,50Hz
Dimension 510*290*730mm
Weight 80kg
