Loading: | Manual Loading | Resolution: | Hardness Resolution 0.1HR |
---|---|---|---|
Vertical Space: | 170mm | Throat Depth: | 130mm |
Test Force: | 60, 100, 150kgf | Test Range: | 20-95HRA, 10-100HRBW, 20-70HRC |

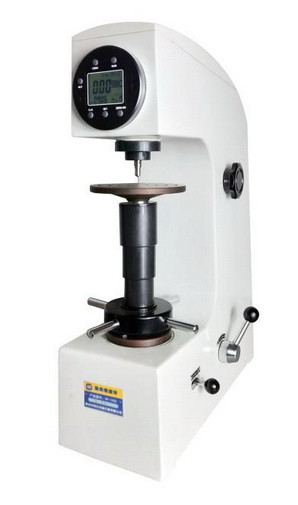

Manual Loading Digital Display Rockwell Hardness Tester with Vertical Test Space 170mm
Brief Introduction:
iqualitrol HR-150S digital display Rockwell hardness tester displays the hardness value digitally. The fuselage is made of high-quality cast iron for one-time casting, combined with the car paint treatment process, the shape is round and beautiful;
The digital display meter reads hardness value directly, and can be automatically converted into Brinell hardness and Vickers hardness;
The precision hydraulic buffer is adopted, no buffer fluid leaks, and the loading and unloading is stable, without impact, and the speed is adjustable;
The accuracy complies with GB/T230.2-2018, ISO6508-2 and American ASTM E18 standards.
Technical Specifications:
Model | HR-150S |
Range of Measurement | 20-95HRA,10-100HRBW,20-70HRC |
Test Force | 588.4,980.7,1471N(60,100,150kgf) |
Maximum Height of Specimen | 170mm |
Throat Depth | 130mm |
Hardness Resolution | 0.1HR |
Loading Mode | Manual |
Power Supply | AC 220V,50Hz |
Dimension | 466*238*630mm |
Weight | 65kg |
