Product Details:
Payment & Shipping Terms:
|
| Loading: | Manual Loading | Resolution: | Hardness Resolution 0.5HR |
|---|---|---|---|
| Test Range: | 20-95HRA, 10-100HRBW, 20-70HRC | Test Force: | 588.4, 980.7, 1471N |
| Throat Depth: | 165mm | Vertical Space: | 400mm |

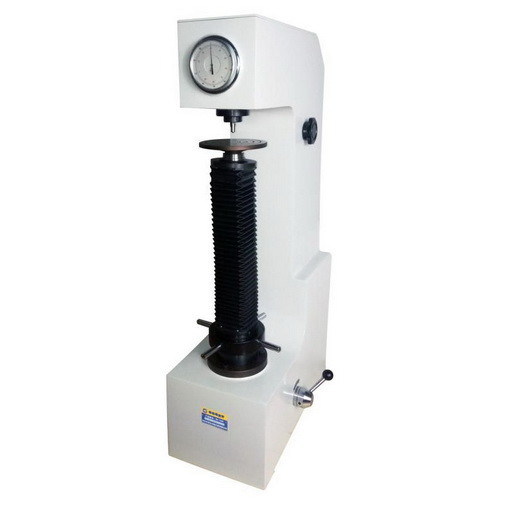

Heightened Manual Loading Rockwell Hardness Testing Machine
with Vertical Space 400mm
Model: HR-150B
product description:
iqualitrol HR-150B manual heightened Rockwell hardness tester, the body is made of high-quality cast iron for one-time casting, with the car paint treatment process, the shape is round and beautiful;
Heightened design, suitable for large and medium-sized parts;
The dial can directly read the hardness value, and can be equipped with other Rockwell scales, such as HRD, HRF and other hardness scales;
The frictionless spindle is adopted, and the test force accuracy is high;
The integrated casting precision hydraulic buffer has no leakage of buffer fluid, and the loading and unloading is stable, no impact, and the speed is adjustable;
The accuracy complies with GB/T230.2-2018, ISO6508-2 and American ASTM E18 standards.
Technical Specifications:
| Model | HR-150B |
| Range of Measurement | 20-95HRA,10-100HRBW, 20-70HRC； |
| Test Force | 588.4, 980.7, 1471N (60, 100, 150kgf) |
| Maximum Height of Specimen | 400mm |
| Throat depth | 165mm |
| Hardness Resolution | 0.5HR |
| Loading Mode | Manual |
| Dimension | 548*326*1025mm |
| Weight | 140kg |
