Motorized Loading Superficial Rockwell Hardness Testing Machine Vertical Space 200mm

China Motorized Loading Superficial Rockwell Hardness Testing Machine Vertical Space 200mm supplier

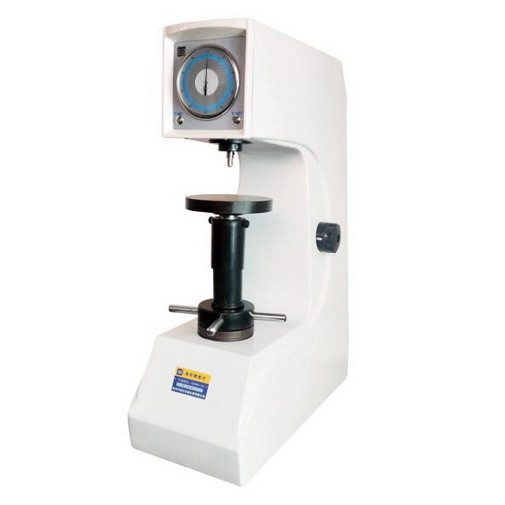

Large Image :  Motorized Loading Superficial Rockwell Hardness Testing Machine Vertical Space 200mm

Product Details:

Place of Origin: Dongguan/China
Brand Name: q1-test
Certification: CE, ISO
Model Number: 2HRD-45

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiate in detail
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 100 Sets per Month
Detailed Product Description
Value Display: Dial Gauge Resolution: 0.5HR
Vertical Space: 200mm Throat Depth: 160mm
Test Force: 15, 30, 45kgf Test Scales: Superficial Rockwell



Motorized Loading Superficial Rockwell Hardness Tester Vertical Space 200mm



Model: 2HRD-45



Product Features:

● iqualitrol 2HRD-45 motorized loading superficial Rockwell hardness tester, the loading, dwell and unloading of the test force is controlled by the motor, and the dwell time can be set;



● The machine body is integral casting by high quality cast iron, with the automotive paint treatment process, the appearance is round and beautiful;



● Read the hardness values directly from the dial;

● Adopt the Friction-Free spindle, high test accuracy;



● The loading, dwell and unloading of the test force is controlled by motor, the manual operation error of manual Rockwell hardness tester is eliminated;



● Accuracy is in line with GB/T230.2, ISO6508-2 and American ASTM E18 standard.



Main Specifications:

Model 200HRD-45
Range of Measurement

70-94HR15N,67-93HR15TW,

42-86HR30N,29-82HR30TW,

20-77HR45N,10-72HR45TW;

Test Force 147.1,294.2,441.3N (15,30,45kgf)
Maximum Height of Specimen 200mm
Throat depth 160mm
Hardness Resolution 0.5HR
Power Supply AC 220V/50Hz
Dimension 510*290*730mm
Weight 80kg
