Product Details:
Payment & Shipping Terms:
|
| Test Space: | Vertical 200mm * Depth 160mm | Loading Control: | Automatic Loading, Dwell, Unloading |
|---|---|---|---|
| Conversion: | Convert The Unit Of The Full Hardness Scale | Structure: | High-quality Cast Iron |
| Display: | LCD Screen | Measure Device: | Adopts Grating Displacement Sensor |

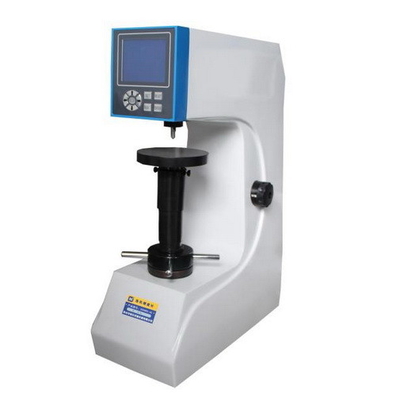

Cast Iron Fuselage Digital Rockwell Hardness Tester Support Value Correction within ±3HR
Model: 2HRS-150
product description:
iqualitrol 2HRS-150 digital display Rockwell hardness tester, the measuring device adopts grating displacement sensor, the result is displayed on the LCD screen, and the test scale, test force, indenter type, dwell time, conversion unit, etc. can be displayed and set;
The fuselage is made of high-quality cast iron for one-time casting, combined with the car paint treatment process, the shape is round and beautiful;
Convenient control system, which can automatically convert the unit of the full hardness scale;
The built-in test software can correct the machine by ±3HR;
The motor is used to control the loading, dwell and unloading of the test force, eliminating the human error of the manual Rockwell hardness tester;
Configure a wireless Bluetooth printer, and output data through the RS232 port;
The accuracy complies with GB/T230.2-2018, ISO6508-2 and American ASTM E18 standards.
Main Parameters:
| Model | 2HRS-150 |
| Range of Measurement | 20-95HRA, 10-100HRBW, 20-70HRC |
| Test Force |
588.4,980.7,1471N (60,100,150kgf) |
| Maximum Height of Specimen | 200mm |
| Throat depth | 160mm |
| Hardness Resolution | 0.1HR |
| Power Supply | AC 220V,50Hz |
| Dimension | 510*290*730mm |
| Weight | 80kg |
