Electronic Loading Brinell Rockwell Vickers Multifunction Hardness Testing Machine

China Electronic Loading Brinell Rockwell Vickers Multifunction Hardness Testing Machine supplier

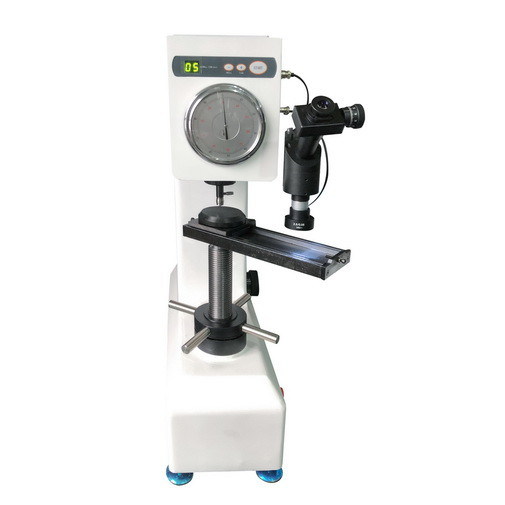

Large Image :  Electronic Loading Brinell Rockwell Vickers Multifunction Hardness Testing Machine

Product Details:

Brand Name: iqualitrol
Model Number: HBRV-187.5

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 20 Sets per Month
Detailed Product Description
Magnification: Brinell: 37.5×, Vickers: 75× Dwell Time: 2~60 Seconds
Test Force: 30-187.5kgf, Level 7 Test Forces Resolution: Brinell: 0.004mm, Vickers: 0.002mm
Specimen Height: Rockwell: 175mm, Vickers/Brinell: 145mm Application: Surface Hardened Steel, Hard Alloy Steel, Cast Iron



Electronic Loading Brinell Rockwell Vickers Multifunction Hardness Testing Machine



Model: HBRV-187.5



product description:

iqualitrol HBRV-187.5 electric Brinell Rockwell Vickers hardness tester has three test methods: Brinell, Rockwell and Vickers.

The application of the test force, the loading and unloading are automatically completed.



Scope of application:

Hardened steel, surface hardened steel, hard alloy steel, cast iron, non-ferrous metals, various quenched and tempered and annealed steel, hardened steel sheet, also suitable for soft metal, surface heat treatment and chemical heat treatment.



Technical Parameter:

Model iqualitrol HBRV-187.5
Test Force 30-187.5kgf, Level 7 test forces
Brinell scales HBW2.5/31.25, HBW2.5/62.5 HBW2.5/187.5 HBW5/62.5
Brinell test force 31.25kgf(306.5N) 62.5kgf(612.9N) 187.5kgf(1839N)
Rockwell scales HRA HRB HRC HRD HRE HRF HRG HRK HRH
Rockwell test force 60kgf(588N) 100kgf(980.7N) 150kgf(1471N)
Vickers scale HV30, HV100
Vickers test force 30kgf(294.2N) 100kgf(980.7N)
Microscope magnification Brinell: 37.5×, Vickers: 75×
Length resolution Brinell: 0.004mm, Vickers: 0.002mm
Maximum test height Rockwell: 175mm, Vickers/Brinell: 145mm
Dwell Time 2~60s
Power supply AC220+5%,50~60Hz
Dimensions 520*200*700mm
Net Weight 60kg
