| Screen: | Touch Screen Display | Test Space: | Vertical 220mm * Throat 135mm |
|---|---|---|---|
| Turret: | Automatic Turret, Indenter And Objective | Eyepiece: | Digital Display Micrometer Eyepiece And Precise Data Calculation System |
| Test Force: | From 62.5kgf - 3000kgf With 10-level Test Force | Printer: | Built-in Printer To Output Measurement Data |

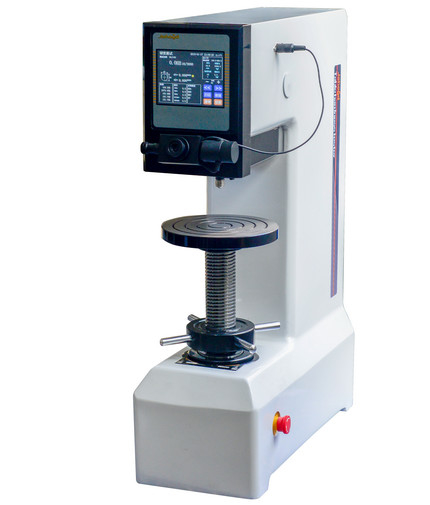

Touch Screen Auto Turret Digital Brinell hardness Testing Machine
Model: HBST-3000Z
Main functions and features:
1. iqualitrol HBST-3000Z has the characteristics of high precision, high repeatability and stability, easy operation, convenient and practical, and high cost performance;
2. With 10-level test force, the test range is wider;
3. Equipped with digital display micrometer eyepiece and precise data calculation system, the hardness value can be displayed directly with one click;
4. The system has its own calibration function, which can be manually adjusted to input the calibration instrument, and can also calibrate the eyepiece magnification.
5. Optical system brightness adjustable range: 0-100;
6. Can store up to 100 sets of test data;
7. The operating system can be converted between Chinese and English;
8. The main interface can display 5 conversion scales at the same time;
9. Equipped with a built-in printer to output measurement data or connected to a computer, the measurement data of the host can be transferred to the computer for editing and saving;
10. Equipped with a high-performance stepping motor to automatically load and unload the test force, the noise generated during the test is smaller
11. Using photoelectric sensing technology and microcomputer control system, it can automatically compensate, and the test results are accurate and stable;
12. Automatic input of indentation diameter, direct display of hardness value, dual display of any hardness unit, avoiding the tedious look-up table;
13. high-magnification LED optical measurement, high image definition, adjustable brightness, and long-term operation should not be fatigued;
14. The shell is cast at one time, the structure is stable and does not deform, and it can work in a relatively harsh environment;
15. The surface is treated with car paint process, which has strong scratch ability and is still as bright as new after many years of use;
Technical Specifications:
| Model | HBST-3000Z, Touch Screen |
| Brinell Scales | HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000 |
| Test force | 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N) |
| Loading control | Automatic (loading/dwell/unloading) |
| Turret | Automatic turret among indenter and objective |
| Specimen height | 220mm |
| Throat depth | 135mm |
| Distance between indenter and upper wall | 55mm(support customized) |
| Length resolution | 0.125um |
| Dwell time | 0~60s |
| Hardness range | 3.18~653HBW |
| Magnification | 20X |
| Test standards | EN ISO 6506, ASTM E-10-08, GB/T231.2, JJG150 -2005 |
| Hardness reading | Automatic calculate |
| Data output | Built-in Printer, Hyper terminal |
| Power supply | AC220+5%, 50~60Hz |
| Dimension | 520*210*745mm |
| Weight | 125kg |
