Hydraulic Pressure Automatic metallographic sample inlaying Mounting press machine

China Hydraulic Pressure Automatic metallographic sample inlaying Mounting press machine supplier

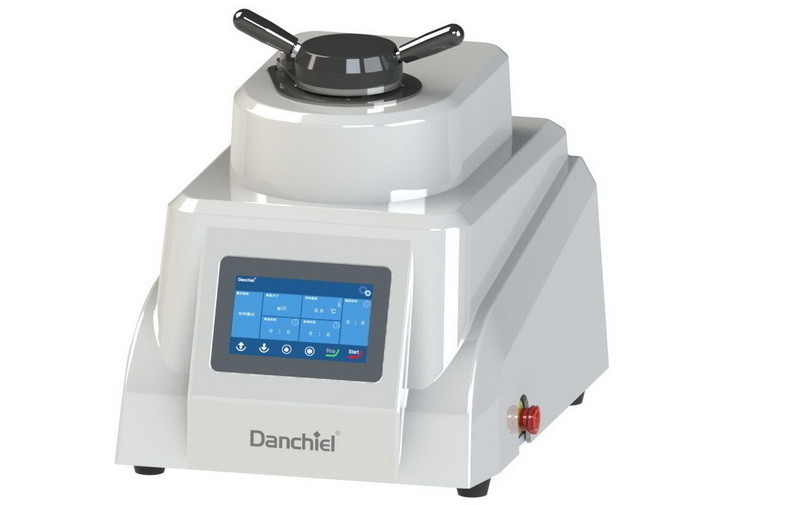

Large Image :  Hydraulic Pressure Automatic metallographic sample inlaying Mounting press machine

Product Details:

Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE, ISO
Model Number: HYXQZ-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiate in details
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 50 Sets per Month
Detailed Product Description
Loading Mode: Hydraulic Pressurization Display: Touch Screen Display Control
Mounting Time: Within 5 Minutes Mould Diameter: Standard Diameter φ30 (option: φ22, φ45)
Temperature: Set Range 0-200℃ Cool Type: Water Cooling



Hydraulic Pressure Automatic metallographic sample inlaying Mounting press machine



Model: HYXQZ-1



Product overview:

Metallographic specimen inlay is a very important step in the process of metallographic specimen preparation.



Iqualitrol HYXQZ-1 is especially suitable for some tiny samples which are difficult to handle or have irregular shape not easy to handle or follow-up automatic grinding and polishing (can be used with the company's automatic grinding and polishing machine, the effect is better).



Iqualitrol HYXQZ-1 is especially suitable for specimens with edge protection or with automatic grinding and polishing. The inlaying of specimens is an essential working procedure.



Technical parameter:

Model HYXQZ-1
Die Specification Standard diameter φ30 (option: φ22, φ45)
Effective depth of die 70mm
Heating Power 2KW
Loading mode Hydraulic pressurization
System pressure 0-300Bar
hydraulic pressure 0-60Bar
Temperature setting range 0-200℃
Dwell time 0-99 Minutes
Cooling time 0-99 Minutes
Mosaic time 5 minutes(From heating to 155 degrees to cooling to 40 degrees, black inlay, inlay thickness within 20 mm)
mosaic material Thermoplasticity and thermoset
Power supply Voltage:220V Voltage:50HZ
Total power 2.2KW
dimension 460X580X550mm
Weight 65KG
