Cutting Mode: | Automatic And Manual | Speed: | Rotation Speed 500-3000rpm |
---|---|---|---|
Motor: | Servo Motor | Feed Speed: | 1~200mm/min (advised 5~12mm/min) |
Cut Ways: | Swing Cutting And Continuous Cutting | Cooling: | Water Tank 120L |

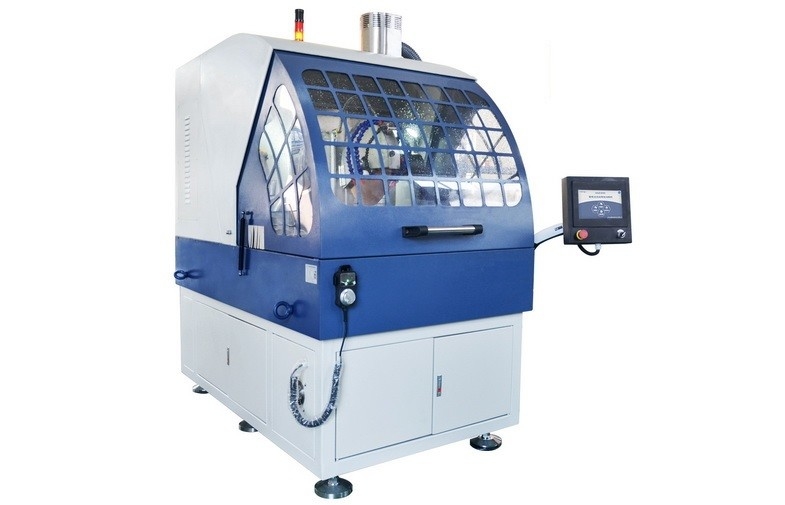

Automatic Large Metallographic Sample Cutting Machine Max Cut Section 140×80mm
Brief Introduction:
The machine is a PLC controlled automatic metallographic sample cutting machine, X/Y/Z directions controlled automatically and precisely, intelligent cutting, the amount of feed can change depending on the material’s hardness, to achieve the fastest cutting effect. Cutting speed frequency conversion control, has very high reliability and control ability.
Main Parameters:
Model | iCut-414 | iCut-415 | iCut-420 |
Control method | Manual / Automatic, three axis linkage, 10 inch touch screen control, Can be switched to the operating handle wheel | ||
Feature | Automatic drain system, alarm system, double LED lighting, red cursor position | ||
Feeding speed | 3mm/min, 5mm/min, 8mm/min, 12mm/min (users may modify the set speed according to requirement) | ||
Cutting disc diameter |
Ø380xØ32x2 mm | Ø400xØ32x3 mm | Ø400xØ32x3 mm |
Work table dimension (X*Y) | 450x350 mm | 485x400 mm | 632×565mm |
Y axis maximum travel distance | 250 mm | 300 mm | 200 mm |
X axis maximum travel distance | 100 mm | 100 mm | 110 mm |
Z axis maximum travel distance | 160 mm | 230 mm | 260 mm |
Max. cutting cross section | 120x100 mm | 200x120 mm | 140x80 mm |
Fixture caliber | 120 mm | 200mm | 160 mm |
Frequency conversion motor | 5.5kw, Speed: 500-2800 r/min | 7.5kw, Speed: 500-2800 r/min | 11kw, Speed: 500-3000 r/min |
Feeding motor | Servo motor | Servo motor | Servo motor |
Volume of the water tank | 120L | 120L | 120L |
Dimensions | 1400x1000x1850mm | 1550x1100x1900mm | 1860x1755x2190mm |
Weight | 1800kg | 2200kg | 2500kg |
