Product Details:
Payment & Shipping Terms:
|
| Model: | GP-2000A | Speed: | Double Wheel, 50~1000rpm |
|---|---|---|---|
| Loading: | Pneumatic Multi Pressure | Preset: | Programmable Preset Speeds And Timer |
| Time Setup: | Pressure & Time Are Adjustable | Dosing: | One Bottle For Dosing With Manual/auto Mode |

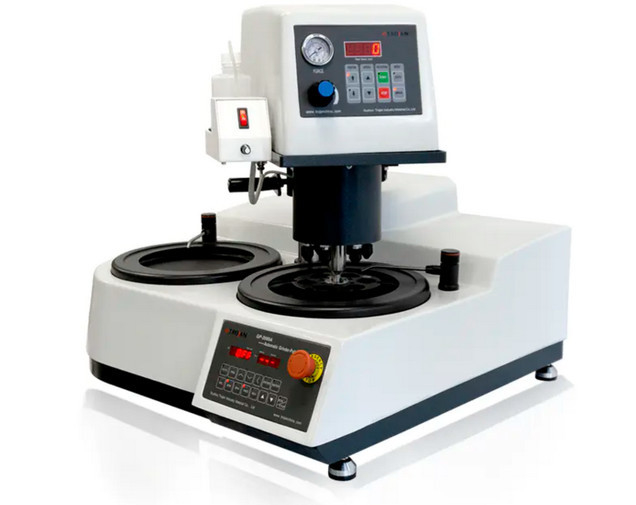

Double Disc GP-2000A Automatic Pre-Grinding, Grinding
and Polishing Machine
Technical Data Download: iqualitrol Grinding and Polishing Machine GP-2000A
Features:
1. Digital display the speed;
2. The pressure & time are adjustable;
3. Three programmable preset speeds and timer; Stepless speed-adjustment: 50-1000rpm on grinding disc;
4. 20-200rpm on grinding head;
5. Equip with quick replace grinding disc & multiple specimen holder;
6. Pneumatic multi pressure;
7. One bottle for dosing with manual/auto mode;
8. Can prepare 6 specimen simultaneously.
Technical Specifications:
| GP-2000A | ||
| Base | Wheel | Double Wheel |
| Speed | 50~1000rpm | |
| Direction | CW/CCW | |
| Power | 750W | |
| Wheel Diameter | 8"-10"(200/250mm) | |
| Head | Force Application | lndividual |
| Speed | 20-200rpm | |
| Individual Force | 0.1~0.4mpa | |
| Power | 250W | |
| Dosing System | Auto-dosing | 1bottle |
| Water Supply | Max. pressure | <0.3MPa |
| Pipe dia. on inlet | OD=Φ8mm | |
| Pipe dia. on outlet | OD=Φ32mm | |
| Recirculating water tank (optional) | Optional | |
| Noisy | Measured at 1 meter | <40dBA |
| Operating Environment | Temperature | -20˚C - 60˚C (-4°F -140°F) |
| Humidity | 0-95%RH | |
| Dimension | W*D*H | 705*698*663mm |
| Voltage | 110V 60Hz, 220V 50HZ | |
| Minimum Pressure Required | 6*Φ40mm, 3*Φ50mm | |
| Weight | 85kg | |
