Max Height 300mm Electronic Brinell Hardness Tester IQUALITROL 400HB-3000 with Touch Screen

China Max Height 300mm Electronic Brinell Hardness Tester IQUALITROL 400HB-3000 with Touch Screen supplier

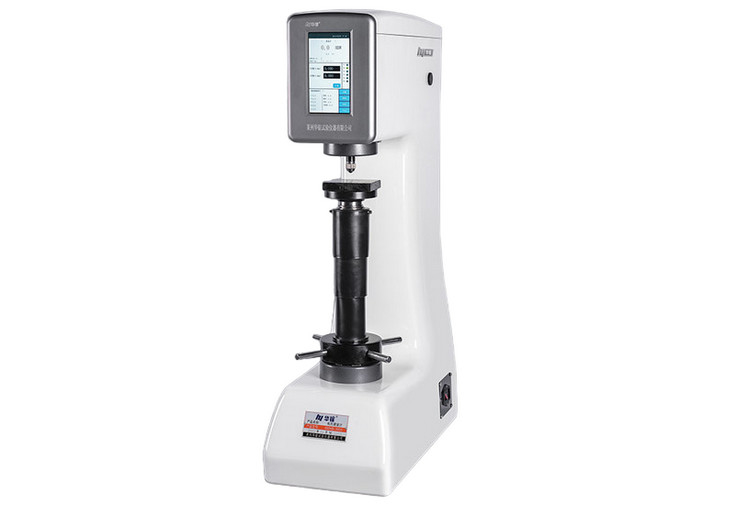

Large Image :  Max Height 300mm Electronic Brinell Hardness Tester IQUALITROL 400HB-3000 with Touch Screen

Product Details:

Brand Name: iqualitrol
Model Number: 400HB-3000

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 10 Sets per Month
Detailed Product Description
Model: 400HB-3000 Test Space: Height 300mm * Depth 150mm
Control System: High-speed Processor, Fully Automatic Closed-loop Pressure Sensor Control System Display: 7-inch LCD Touch Screen, Reading Microscope Under The Machine Measurement, Manual Input Of Indentation Diameter



Max Height 300mm Electronic Brinell Hardness Tester
400HB-3000 with Touch Screen



Technical Specifications:

Measuring range: 8-650HBW
Test force

306.5, 612.9, 980.7, 1226, 1839, 2452, 4903.5, 7355, 9807, 14710.5, 29421(N)

31.25, 62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000(kgf)

Brinell Scales HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000
Max. height of test piece 300mm
Depth of Throat 150mm
Dimensions: 570*330*930mm
Voltage AC220V/50HZ
Weight 150kg


Main Features:

● The test force loading mechanism designed by applying Pascal's law, stable and impact-free, effectively meeting the requirements of the Brinell hardness test method;



● The test force loading mechanism, pressure sensor and Brinell spindle indenter are directly connected to form the Brinell hardness test head technology - bistable direct-drive hardness tester loading unit, which has obtained a national invention patent and two utility model patents;



● Adopting ARM high-speed processor, fully automatic closed-loop pressure sensor control system, electronic control of loading and unloading test force, high force value accuracy;



● Cast iron casing, solid structure, good rigidity, reliable, durable, high test efficiency;

● 7-inch LCD touch screen, reading microscope under the machine measurement, manual input of indentation diameter to display hardness value;



● Test force application-holding-unloading is fully automatic, and the time-force value curve is dynamically displayed during the loading and unloading process;



● The screen can display the test force, indentation length, holding time, number of measurements, etc.;

● 13 test scales; 11 test force levels, force range: 31.25kgf-3000kgf;



● With database storage function, test data can be stored synchronously and exported;

● Equipped with USB and RS232 interfaces, convenient for users to process data;



● The accuracy complies with GB/T231.2, ISO6506-2 and American ASTM E10.



Scope of application:

● Determine the Brinell hardness of ferrous metals, non-ferrous metals and other materials;

● Determine the Brinell hardness of bearing alloy materials such as lead-based alloys, babbitt alloys, tin-bismuth alloys;



● Determine the Brinell hardness of certain non-metallic materials such as hard plastics and bakelite;

● Determine the Brinell hardness of parts produced by casting, forging, rolling and other processes.
