Model: | HBRV-187.5 | Microscope: | 40X Reading Microscope, High Precision |
---|---|---|---|
Test Space: | Height 200 * Depth 160mm | Rockwell Range: | 20-95HRA,10-100HRBW, 20-70HRC |

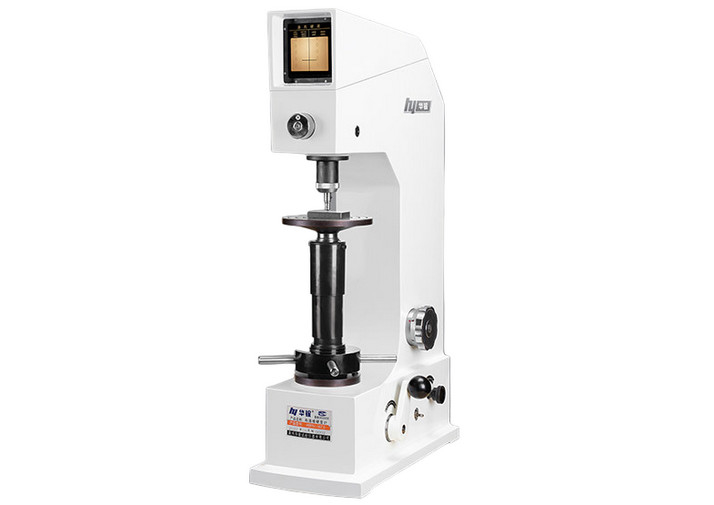

Optical Brinell Rockwell Vickers Multi-functional Hardness Tester HBRV-187.5 with 40x Reading Microscope
Main Features:
● iqualitrol HBRV-187.5 is a multifunctional hardness tester with weight loading test force, which can simultaneously perform Brinell, Rockwell and Vickers hardness test functions;
● Solid structure, good rigidity, reliable, durable, and high test efficiency;
● 40X reading microscope, high precision;
● Rockwell hardness scale apply optical screen direct reading, Brinell and Vickers hardness results are obtained by looking up the table;
● The accuracy complies with GB/T230.2, GB/T231.2, GB/T4340.2; ISO6508-2, ISO6506-2, ISO6507-2 and American ASTM E18, ASTME10, ASTM E92.
Main Parameters:
Model | HBRV-187.5 | |
Test Force | Rockwell | 60,100,150kgf (588,980,1471N) |
Brinell |
306.5,612.9, 1838.8(N) 31.25,62.5,187.5(kgf) |
|
Vickers |
294.2, 980.7(N) 30, 100,(kgf) |
|
Hardness Scales | Rockwell | HRA, HRBW, HRC |
Brinell | HBW2.5/31.25,HBW2.5/62.5,HBW2.5/187.5,HBW5/62.5 | |
Vickers | HV30, HV100 | |
Range of Measurement | Rockwell | 20-95HRA,10-100HRBW, 20-70HRC |
Brinell | 5-650HBW | |
Vickers | 5-3000HV | |
Indenters | Diamond Rockwell Indenter, Diamond Vickers Indenter, Ф1.588mm, Ф2.5mm,Ф5mm Tungsten Carbide Brinell Ball Indenter | |
Magnifications | 40X | |
Dwell Time | 1 to 99 seconds | |
Distance between Indenter Center and Wall | 160mm | |
Available Maximum Height of Specimen | Rockwell | 200mm |
Brinell, Vickers | 200mm | |
Outline Dimension | 520*260*780mm | |
Power Supply | AC220V, 50/60Hz | |
Weight | 100kg |
